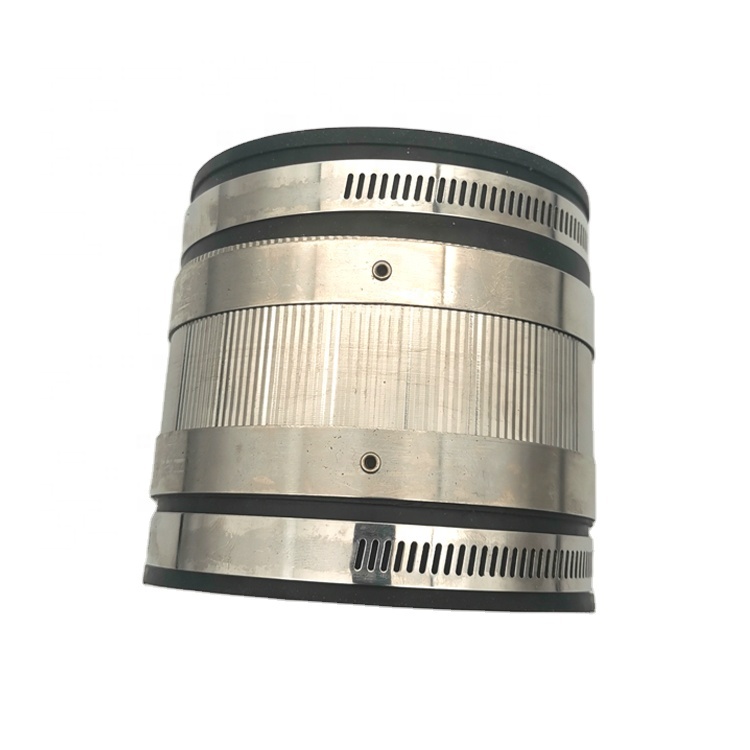

How to Size a Flexible Pipe Coupling

　　Flexible pipe couplings are essential components in plumbing systems, designed to connect two pipes securely while allowing for slight misalignment, thermal expansion, and vibration absorption. Choosing the correct size ensures a leak-proof connection, prevents system failures, and extends the lifespan of plumbing infrastructure. This guide walks readers through the process of sizing flexible pipe couplings, highlighting key considerations and practical tips for both homeowners and professionals.

　　Understanding Flexible Pipe Couplings

　　Flexible pipe couplings are versatile fittings used to join pipes of the same or different materials (e.g., metal, plastic, or composite). Unlike rigid couplings, they accommodate movement and reduce stress on pipes, making them ideal for applications prone to shifting or temperature fluctuations. Their flexibility stems from a rubber or elastomeric sleeve reinforced with metal bands, which compresses to create a watertight seal.

　　Before sizing a coupling, it’s crucial to identify the pipe’s material, diameter, and wall thickness, as these factors influence compatibility and performance. Missteps in selection can lead to leaks, reduced flow efficiency, or premature coupling failure.

　　Determining Pipe Diameter: The Foundation of Sizing

　　The first step in sizing a flexible pipe coupling is accurately measuring the pipe’s outer diameter (OD). For cylindrical pipes, use a caliper or measuring tape to record the OD in inches or millimeters. If the pipe is oval-shaped or damaged, measure the widest and narrowest points and average them.

　　For pipes with irregular surfaces (e.g., corrugated or ribbed), consult the manufacturer’s specifications or use a template to match the coupling’s size range. Many couplings are designed to fit standard pipe sizes, but non-standard pipes may require custom solutions.

　　Accounting for Pipe Wall Thickness and Schedule

　　Pipe wall thickness, often referred to as “schedule” (e.g., Schedule 40. 80), affects the coupling’s grip and seal. Thicker walls require couplings with deeper grooves or additional bands to ensure a secure fit. Using a coupling rated for a thinner wall than your pipe can result in slippage or leaks.

　　To determine the schedule, check the pipe’s markings (typically stamped on the surface) or refer to plumbing codes. If unsure, consult a professional or use a wall thickness gauge for precise measurements.

　　Matching Coupling Size to Pipe Dimensions

　　Flexible couplings are typically labeled by their “range” or “fit,” indicating the minimum and maximum pipe diameters they accommodate. For example, a 1–2 inch coupling fits pipes with an OD between 1 and 2 inches. Select a coupling where your pipe’s OD falls within this range, leaving a small gap (1/16–1/8 inch) for the rubber sleeve to compress.

　　Avoid oversized couplings, as they may not seal properly, or undersized ones, which could damage the pipe. If connecting pipes of different diameters, use a “reducing” coupling designed for this purpose.

　　Considering Operational Conditions and Pressure Ratings

　　The environment and system demands play a critical role in coupling selection. High-pressure applications (e.g., main water lines) require couplings with higher pressure ratings, typically indicated in pounds per square inch (PSI). Similarly, couplings exposed to chemicals, UV rays, or extreme temperatures must be made from compatible materials (e.g., EPDM rubber for chemicals, neoprene for heat resistance).

　　For outdoor installations, choose couplings with UV-resistant sleeves to prevent cracking. In freezing climates, opt for couplings rated for low temperatures to maintain flexibility.

　　Installing the Coupling Correctly for Longevity

　　Proper installation is as vital as correct sizing. Begin by cleaning the pipe ends to remove debris, burrs, or corrosion. Slide the coupling halfway onto one pipe, align the pipes, and then push the coupling over the second pipe until the bands are centered. Tighten the bands evenly using a torque wrench (following manufacturer guidelines) to avoid over-compression.

　　After installation, test the connection for leaks by running water or applying pressure. If leaks persist, check for misalignment, inadequate tightening, or debris trapped in the sleeve.

　　Common Pitfalls and How to Avoid Them

　　Using the Wrong Coupling Type: Mixing up standard, reducing, or transition couplings can lead to mismatches. Always verify the coupling’s purpose.

　　Ignoring Temperature Limits: Rubber sleeves can degrade if exposed to temperatures beyond their rating. Check the manufacturer’s specs.

　　Skipping Inspection: Damaged pipes (cracks, dents) should be repaired before coupling. A weak pipe may cause the coupling to fail.

　　Over-Tightening Bands: Excessive force can strip threads or damage the sleeve. Follow torque recommendations strictly.

　　Conclusion

　　Sizing a flexible pipe coupling requires attention to detail but is manageable with the right tools and knowledge. By accurately measuring pipe dimensions, considering operational conditions, and following installation best practices, homeowners and professionals can ensure reliable, long-lasting plumbing connections. When in doubt, consult a plumbing expert or the coupling manufacturer’s resources to avoid costly mistakes.
