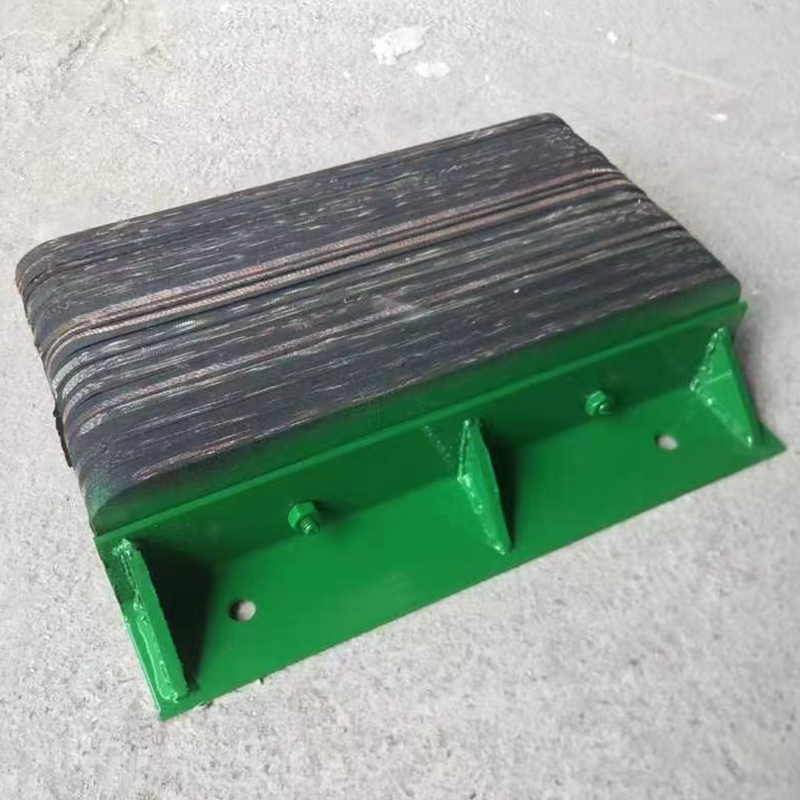

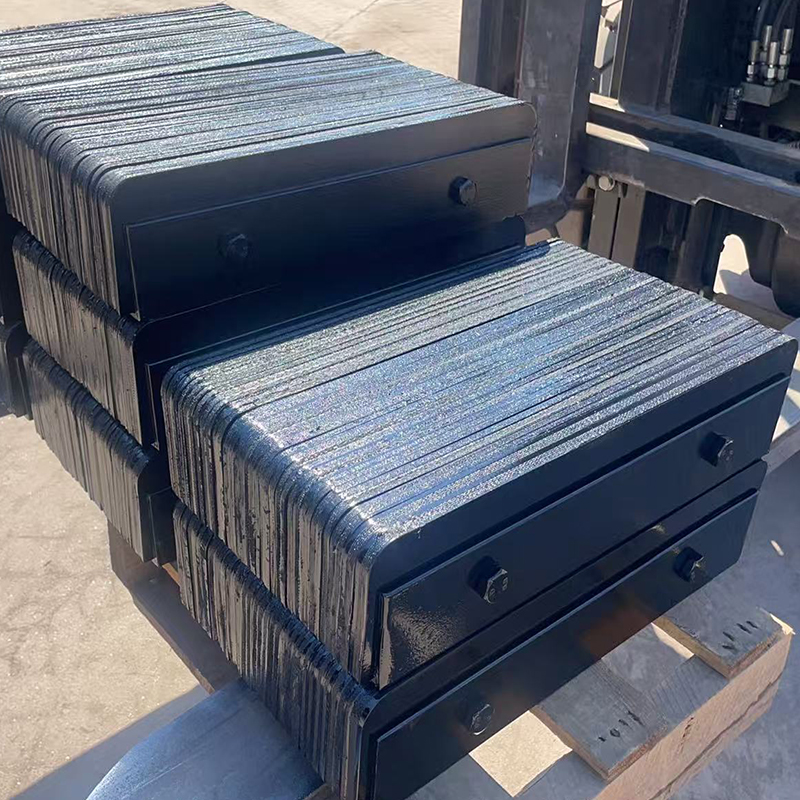

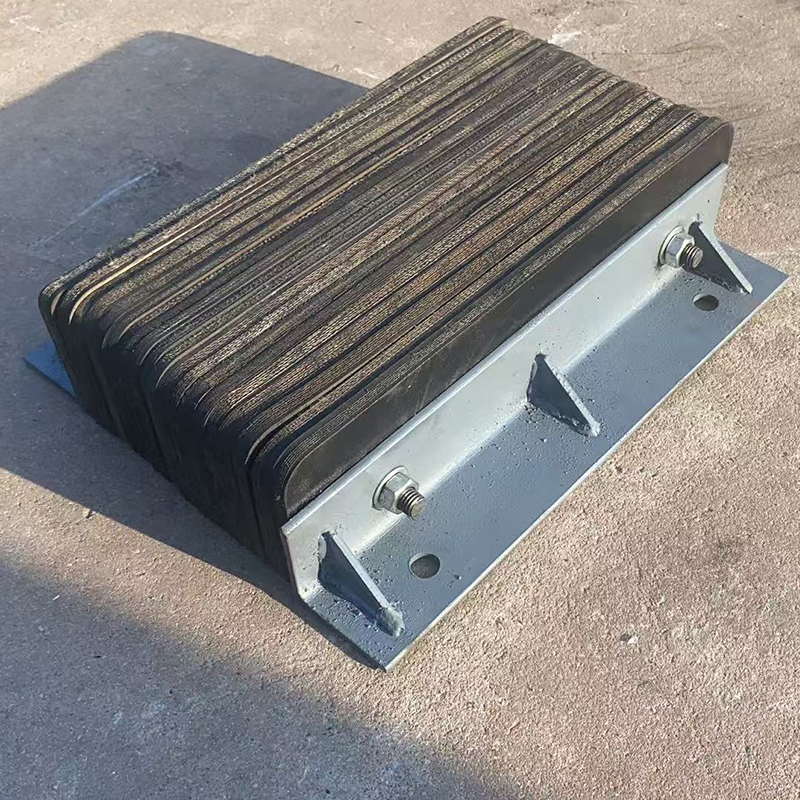

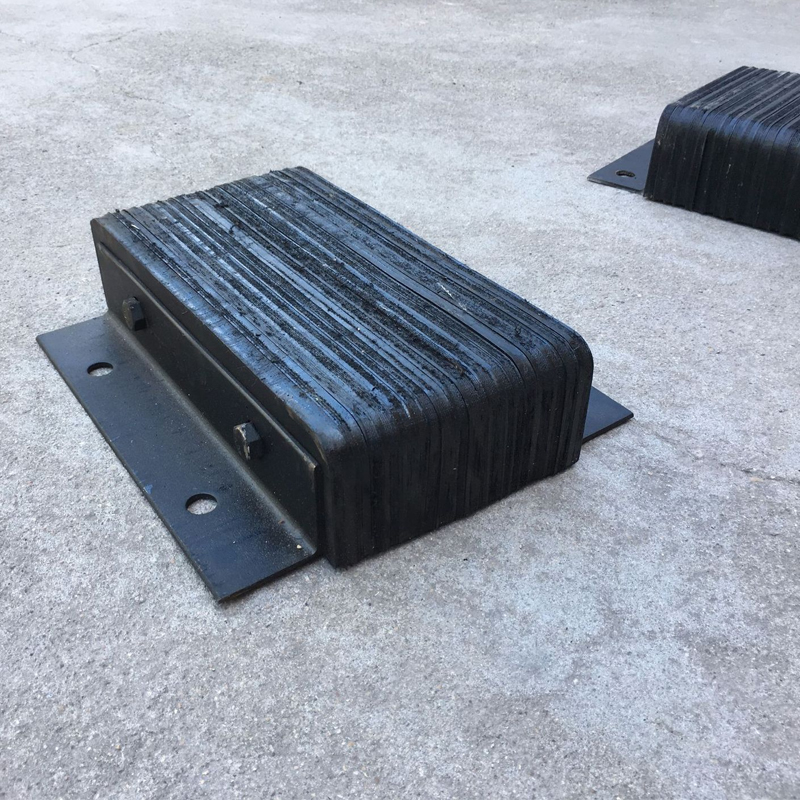

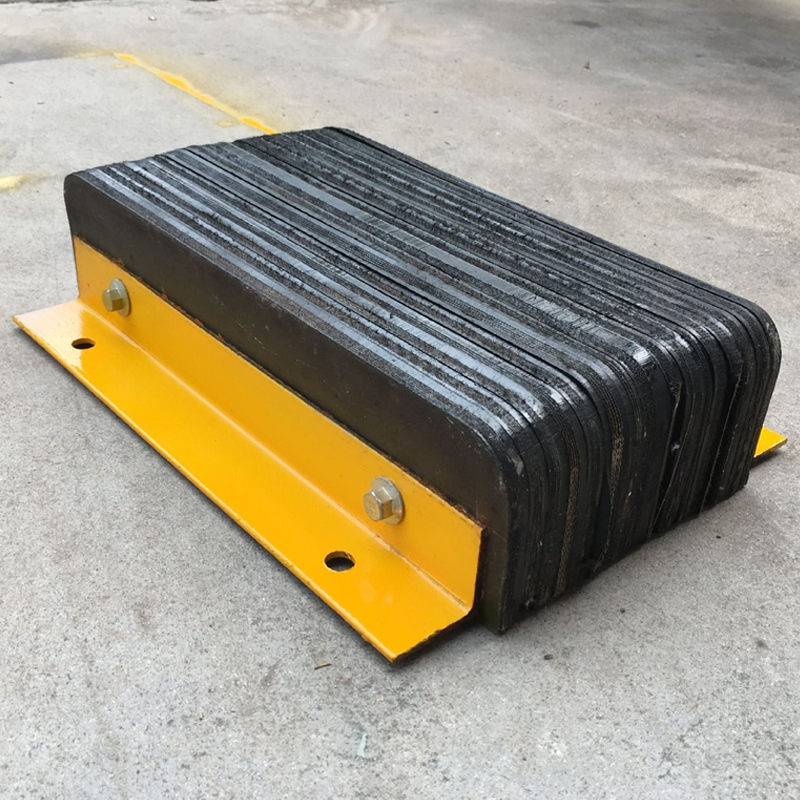

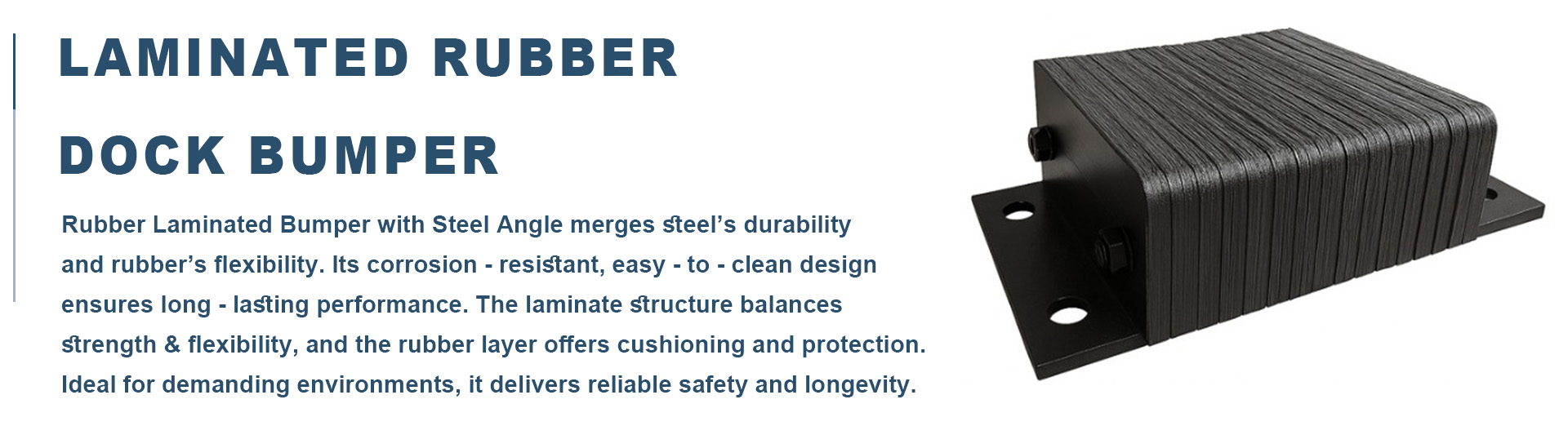

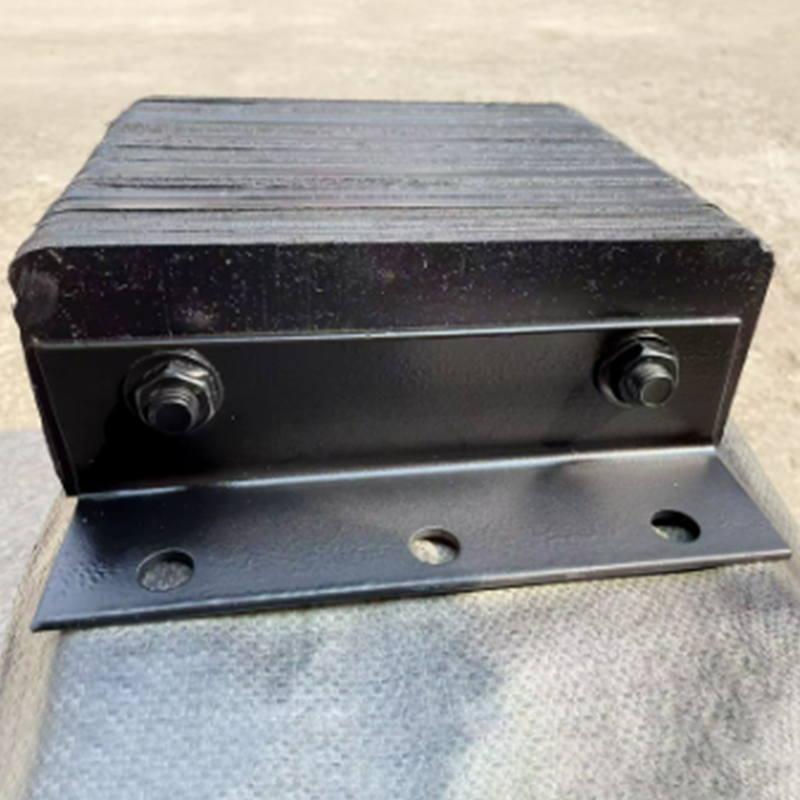

Laminated Rubber Dock Bumper Information| Name | Steel-angle Laminated Rubber Loading Dock Bumper | |
| Material | Rubber+Steel | |
| Processing Service |
Moulding |
|
| Steel thickness |
6mm or 8mm |
|
| Color | Black, Black+Yellow, Customized | |
| Size |
Customized |
|
| Feature |
Durable, High Temperature and Wear Resistant |
|
| Function |
Protect The Truck Trailer Buildings From Damage |
|
| Application |
Loading docks, Warehouses, Port, Harbor, Factories, Truck, Trailer. |
|
| Service |
OEM, ODM, Customized |
Laminated Rubber Dock Bumper Feature
Laminated Rubber Dock Bumper Applications
| Rubber loading bumper blocks are widely used in industrial and logistical settings to absorb impact, prevent equipment damage, and ensure operational safety. Key applications include: | |

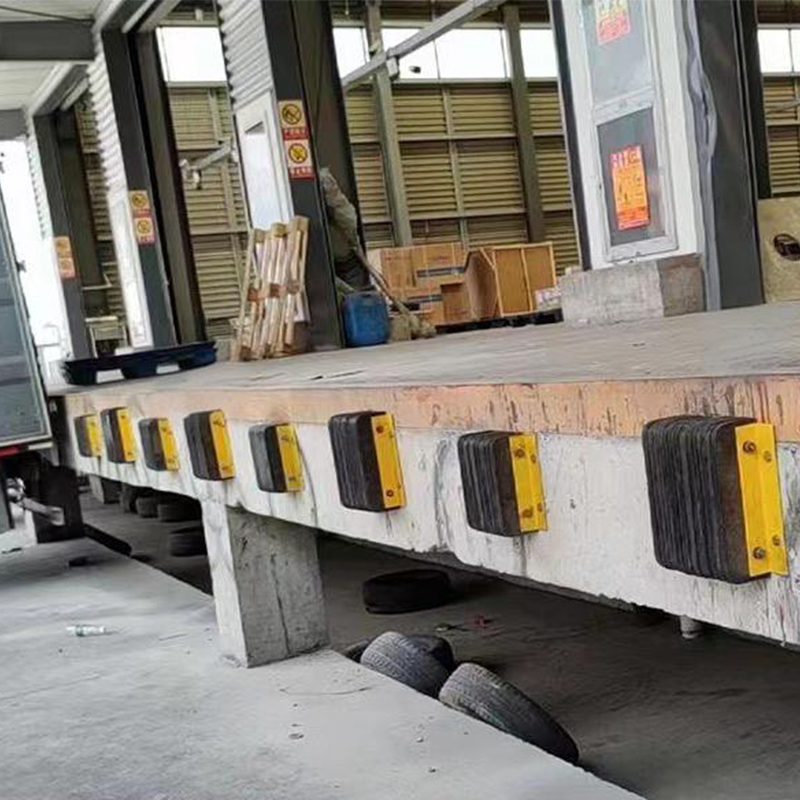

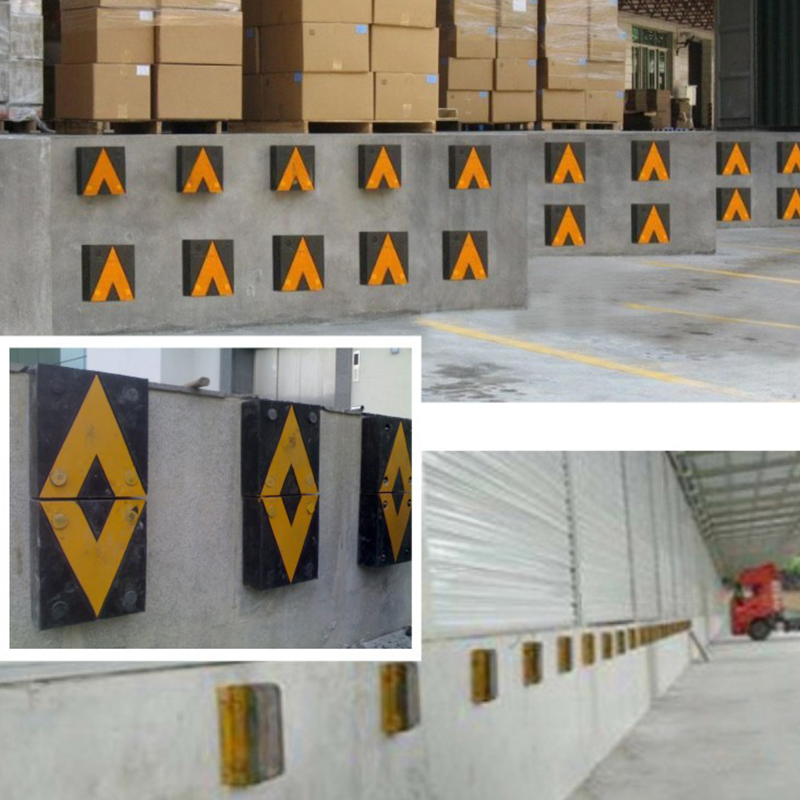

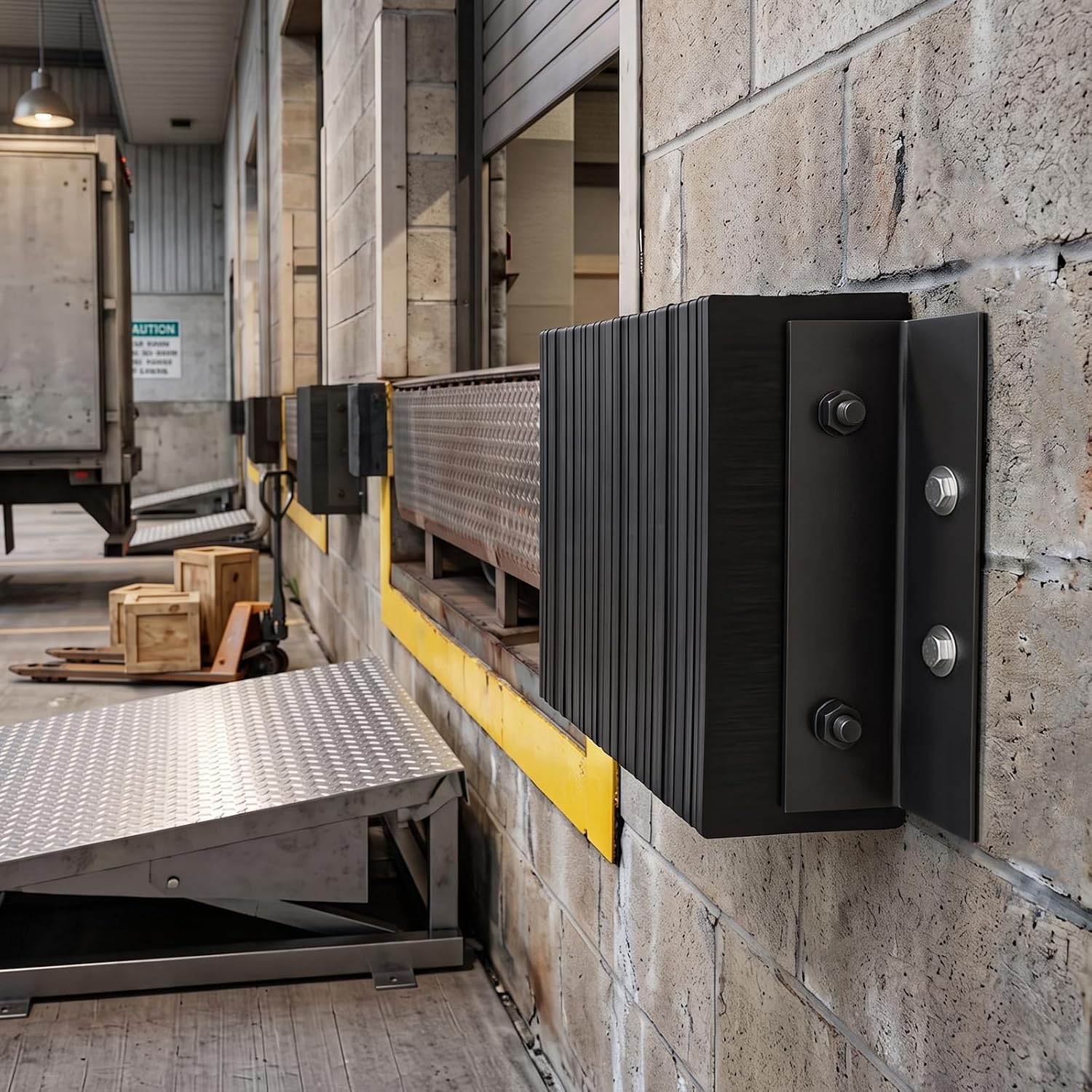

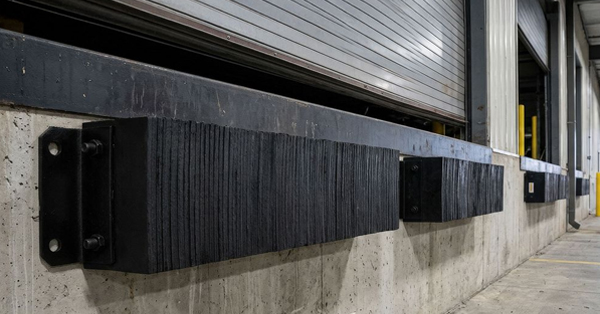

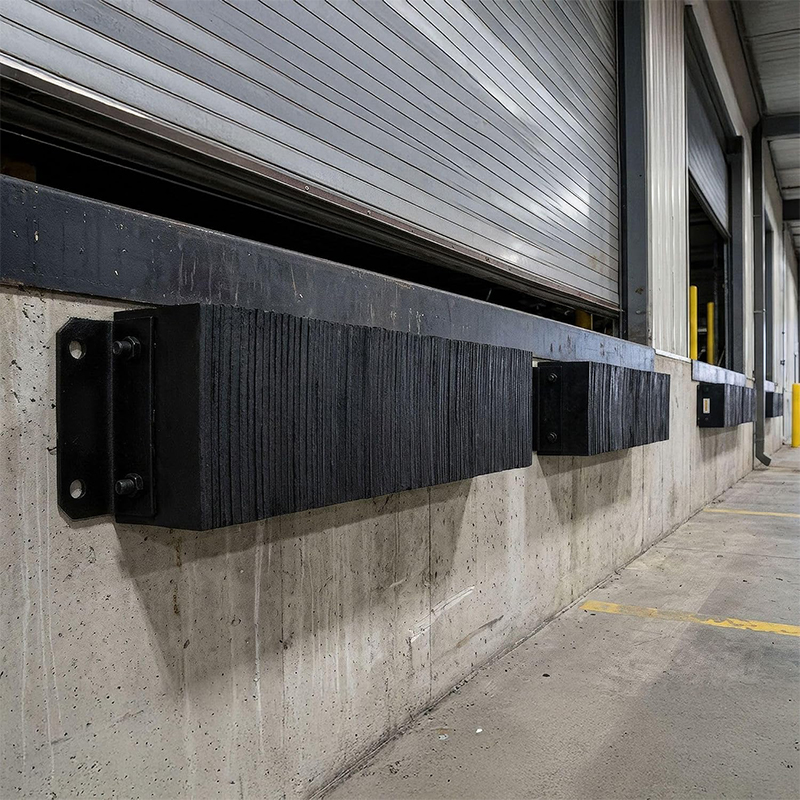

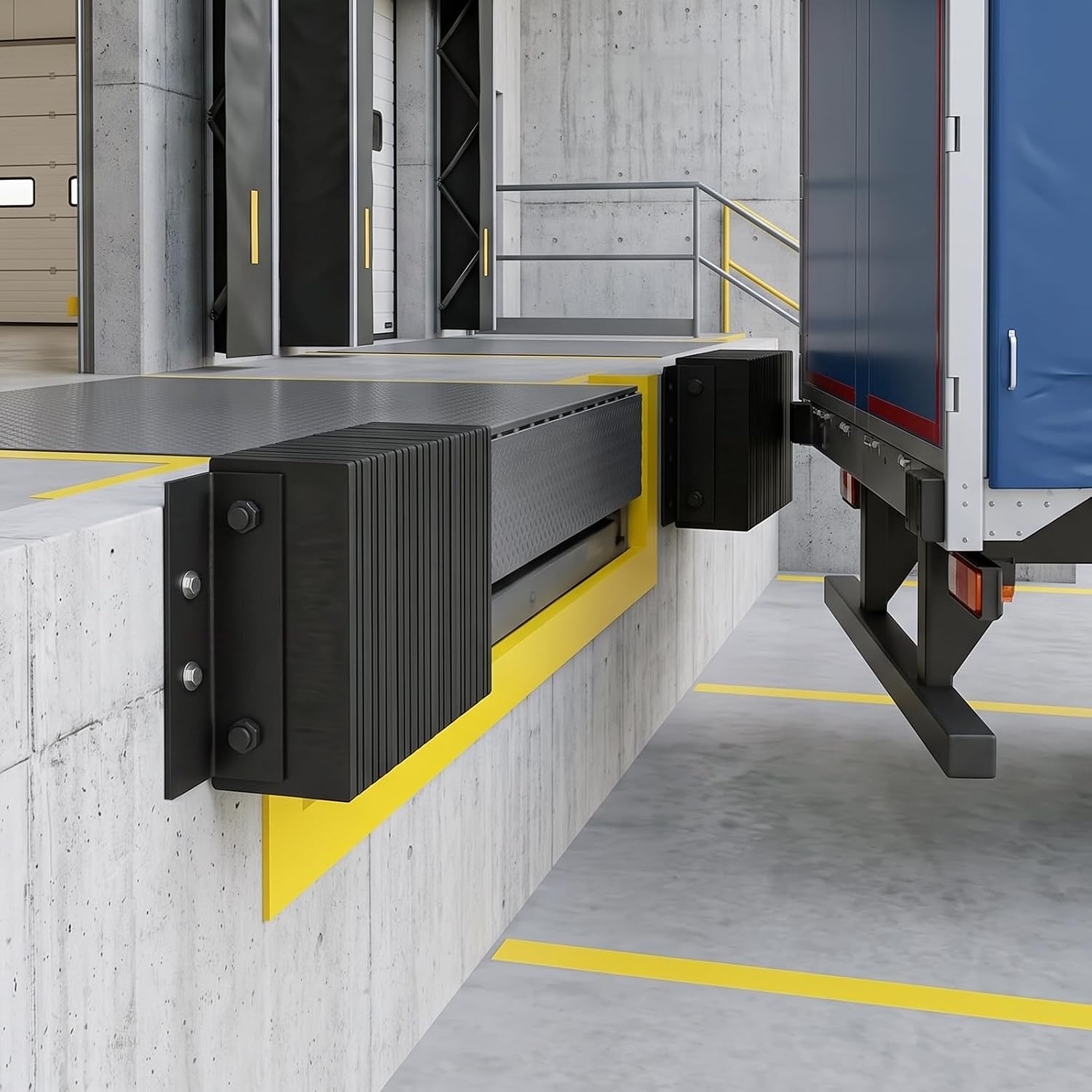

| *Industrial Loading Zones: Installed on loading docks or platform edges to protect walls, equipment, or structures from collisions caused by trucks, forklifts, or heavy cargo during material handling. | |
| *Warehouse Facilities: Mounted on racking systems or storage areas to cushion impacts from moving machinery or pallets, minimizing structural wear. | |
| *Transportation Vehicles: Attached to trucks, trailers, or cargo containers to reduce shock during loading/unloading or road vibrations. | |
| *Building Structures: Integrated into seismic dampers or building joints to absorb vibrations and enhance structural resilience in earthquake-prone areas. | |
| *Rail and Logistics Hubs: Applied to railcar buffers or freight-handling equipment to mitigate impacts during cargo transfer. | |
| These blocks are favored for their durability, weather resistance, and energy-absorbing properties, making them essential in high-impact environments. |
Our Advantages| *Professional:Focused on manufacturing rubber seal for more than 20 years. |
|
| *Multi-kinds of mold:We can provide samples and molds. Products with different shapes, colors, and special performance requirements can all meet the needs of design and use. |
|
| *Customized:You can customize the shape and size you want. |
|
| *Service:Fast delivery of sealing strips Seal solution and technical support. 24-hour online service. |
|
| *Reasonable and competitive price. |
|
| *Industry-leading top seller. |
Product Size
 |
|||||

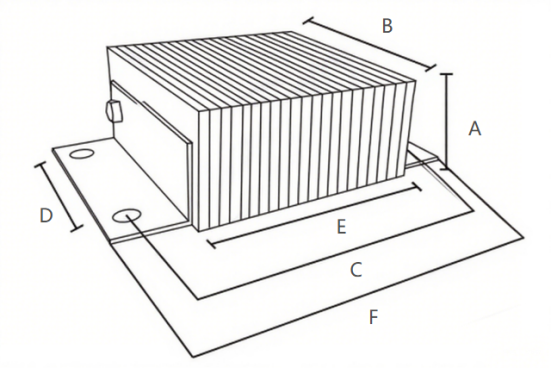

| SIDE A: Projection, on the platform it is the measurement between the wall and the vehicle SIDE B: Height, on the platform is the vertical measurement of the rubber, (angle side) SIDE C: Length between holes, is the measurement between the center of the hole of one angle to the center of the hole of the other angle. SIDE D: Height between holes, is the measurement between the center of the hole of one angle and the center of the other hole of the same angle. SIDE E: Length, on the platform, is the horizontal measurement of the rubber (between angle and angle) SIDE F: Total length, on the platform it is the horizontal measurement of the entire piece, including the angles. |
|||||
| Name | No. | Type Size | Length | Width | Height |
| Steel-angle Laminated Rubber Loading Dock Bumper | 1 | 1012-4.5 | 254 | 305 | 115 |
| 2 | 1014-4.5 | 254 | 355 | 115 | |
| 3 | 1018-4.5 | 254 | 457 | 115 | |
| 4 | 1024-4.5 | 254 | 610 | 115 | |
| 5 | 1030-4.5 | 254 | 760 | 115 | |
| 6 | 1036-4.5 | 254 | 915 | 115 | |
| 7 | 1096-4.5 | 254 | 244 | 115 | |
| 8 | 1012-6 | 254 | 305 | 152 | |
| 9 | 1014-6 | 254 | 355 | 152 | |
| 10 | 1018-6 | 254 | 457 | 152 | |
| 11 | 1024-6 | 254 | 610 | 152 | |
| 12 | 1030-6 | 254 | 760 | 152 | |
| 13 | 1036-6 | 254 | 915 | 152 | |
| Size and Model | ||||||
| DLYY = Series 45 or 55 = Projection AA = Angle/Angle, can also be A$ = Angle/Steel |
||||||

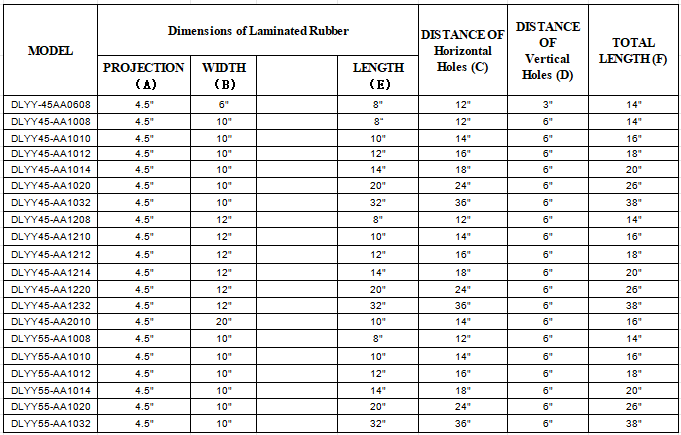

| Model | Dimensions of Laminated Rubber | DISTANCE OF Horizontal Holes (C) | DISTANCE OF Vertical Holes (D) | TOTAL LENGTH (F) | ||
| PROJECTION (A) | WIDTH (B) | LENGTH (E) | ||||
| DLYY-45AA0608 | 4.5" | 6" | 8" | 12" | 3" | 14" |
| DLYY-45AA1008 | 4.5" | 10" | 8" | 12" | 6" | 14" |
| DLYY-45AA1010 | 4.5" | 10" | 10" | 14" | 6" | 16" |
| DLYY-45AA1012 | 4.5" | 10" | 12" | 16" | 6" | 18" |
| DLYY-45AA1014 | 4.5" | 10" | 14" | 18" | 6" | 20" |
| DLYY-45AA1020 | 4.5" | 10" | 20" | 24" | 6" | 26" |
| DLYY-45AA1032 | 4.5" | 10" | 32" | 36" | 6" | 38" |
| DLYY-45AA1208 | 4.5" | 12" | 8" | 12" | 6" | 14" |
| DLYY-45AA1210 | 4.5" | 12" | 10" | 14" | 6" | 16" |
| DLYY-45AA1212 | 4.5" | 12" | 12" | 16" | 6" | 18" |
| DLYY-45AA1214 | 4.5" | 12" | 14" | 18" | 6" | 20" |
| DLYY-45AA1220 | 4.5" | 12" | 20" | 24" | 6" | 26" |
| DLYY-45AA1232 | 4.5" | 12" | 32" | 36" | 6" | 38" |
| DLYY-45AA2010 | 4.5" | 20" | 10" | 14" | 6" | 16" |
| DLYY-55AA1008 | 4.5" | 10" | 8" | 12" | 6" | 14" |
| DLYY-55AA1010 | 4.5" | 10" | 10" | 14" | 6" | 16" |
| DLYY-55AA1012 | 4.5" | 10" | 12" | 16" | 6" | 18" |
| DLYY-55AA1014 | 4.5" | 10" | 14" | 18" | 6" | 20" |
| DLYY-55AA1020 | 4.5" | 10" | 20" | 24" | 6" | 26" |
| DLYY-55AA1032 | 4.5" | 10" | 32" | 36" | 6" | 38" |
FAQ5. How long can I expect to get the sample?
The samples will be ready for delivery in 7-15days. The samples will be sent to you via express and arrive in 5-7days.
