Concrete Culvert Rubber Inflatable Airbag | Inflatable Mandrel for Concrete Formwork

Item No.: Concrete Culvert Rubber Inflatable Airbag Mandrel
Premium concrete culvert rubber inflatable airbag perfectly interchangeable with standard inflatable mandrels. High-tensile vulcanized structure ensures superior reuse and durability for concrete formwork. Inquire now for technical data sheets!
  • Cross-Section Shape:
    Round / Circular
    Octagonal
    Oval / Rectangular
    Custom Cross-Section Shape
  • Specification / Dimensions:
    Standard Project Dimensions
    Custom Length & Diameter
Description Specifications FAQ About us
Description
Concrete Culvert Rubber Inflatable Airbag Specifications
  Name Rubber Inflatable Core Mold Air Bag Used In Pipeline Tunnel Concrete Pouring And Forming Projects Of Highway Bridges & Culvert Construction
  Material Natural RB
  Tensile strength
>12Mpa
  Hardness 60+/-5 Shore A
  Color Black (Standard Rubber Color)
  Size Range Diameter: DN150mm - DN2000mm | Length: 1m - 30m
(Full Customization Supported via Project Drawings)
  Cross-Section Shape Round/Circular, Octagonal, Oval, Rectangular, or Customized
  Temperature scope -10 to 90
  Working pressure 0.11MPa
  Reinforcement Structure High-Tensile Synthetic Fabric Cords (Multi-Layer Layering)
  Service Life / Reusability Reusable up to hundreds of construction cycles (Proper maintenance required)
High-reusability concrete culvert rubber inflatable airbags and inflatable rubber mandrels for bridge voids and concrete formwork infrastructure.
Reusable Rubber Inflatable Mandrel for Concrete Culvert & Bridge Construction
Our concrete culvert rubber inflatable airbags (also known as inflatable rubber mandrels or core molds) are high-performance engineering formworks designed to replace traditional heavy steel and wooden molds in hollow concrete structures. Manufactured via 100% high-temperature integrated vulcanization, these mandrels feature exceptional tensile strength (>12MPa) and thermal stability, allowing them to withstand the intense volumetric pressure of freshly poured concrete without dimensional deformation or collapse.
The advanced non-corrosive, non-stick smooth elastomer surface guarantees clean, defect-free, and smooth internal concrete arches. Engineered for maximum cost efficiency in modern infrastructure projects, each DLYY inflatable mandrel is highly durable, wear-resistant, and reusable up to hundreds of construction cycles, effectively reducing your structural formwork costs by over 50%. It is globally utilized as the primary internal formwork solution for precast concrete culverts, highway bridge voids, high-speed railway drainage flumes, and municipal tunnel engineering.

Concrete Culvert Rubber Inflatable Airbag Features
* Applicable Projects: Engineering-grade performance designed for highway bridges, concrete culverts, and tunnels.
* Manufacturing Process: 100% high-temperature integrated vulcanization with high-tensile synthetic fabric cords.
* Core Advantages: Exceptional tear resistance, high thermal stability, and reusable up to hundreds of times to reduce construction mold costs.
* Global Compliance: Fully compatible with international infrastructure material specifications and standard project safety protocols.

Concrete Inflatable Mandrel Shapes
Available Cross-Section Shapes of DLYY Inflatable Rubber Mandrels
To perfectly match complex engineering drawing requirements and structural void designs, DLYY provides full-spectrum geometric engineering and non-standard mold customization. Our reusable pneumatic concrete airbags are engineered into multiple highly stable cross-section geometric configurations:
* Round & Oval Mandrels: Optimized for circular culverts, high-speed rail concrete drainage flumes, and municipal sewage infrastructure pipelines.
* Regular & Flat Octagonal Mandrels: Highly utilized as the standard internal hollow formwork for precast concrete bridge voided slabs, beams, and highway girders.
* Rectangular & Customized Reducer Airbags: Designed for specialized box culverts, multi-cavity tunnel linings, and heavy civilian infrastructure formwork.
The cross-sectional shape of the inflatable rubber airbag
Concrete Inflatable Mandrel Applications
* Highway & Railway Bridges:
Highly utilized as the standard internal hollow formwork for precast or cast-in-place concrete bridge voided slabs, beams, and girders.
* Concrete Culverts & Box Engineering:
Perfect internal mandrel solution for municipal concrete storm culverts, drainage flumes, precast box culverts, and underground pipe galleries.
* Tunnel & Subway Shafts:
Engineered for structural concrete pouring, lining formation, and emergency drainage void construction in tunnels and subway engineering.
* Civil Infrastructure Construction:
Applied in reinforced concrete irrigation channels, aqueducts, and deep foundation precast concrete component forming.

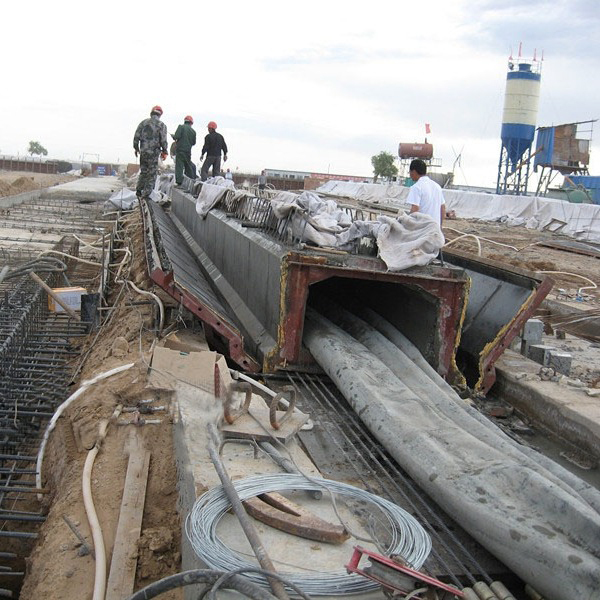

Dual concrete culvert rubber inflatable airbags positioned inside reinforcement formwork for municipal drainage flume casting projects.Heavy-duty large diameter inflatable rubber mandrel expanded under air pressure inside tunnel foundation concrete formwork.
Onsite engineering quality inspection of a concrete box culvert internal arch formed by a high-reusability inflatable rubber mandrel.Long heavy-duty concrete inflatable rubber mandrels with specialized cross-section shapes inflated on site for bridge hollow slab construction.
Comprehensive project reference portfolio showing reusable rubber inflatable core molds utilized across multiple highway bridge voids and precast culverts.
Our Advantages
 *
Integrated Multi-Layer Structure: Manufactured via 100% high-temperature vulcanization with high-tensile fabric cords to withstand intense heavy concrete pouring volumetric pressure.
 *
Maximum Project Cost Efficiency: Superior wear and tear resistance allows each mandrel to be highly reusable up to hundreds of construction cycles, reducing core mold costs by over 50%.
 *
Excellent Geometric Stability: Exceptional structural retention and anti-slip friction coefficient guarantee clean, flawless, and smooth internal concrete hollow profiles.
 *
Time & Labor Saving Deployment: Lightweight, flexible, and easy to deflate or roll up for storage, replacing heavy, traditional steel and wooden formworks under standard site protocols.
* concrete

Download the CONCRETE CULVERT RUBBER INFLATABLE AIRBAG CATALOG for the details.
Specifications
Concrete Inflatable Mandrel Specifications
Φ 180mm x 6-20m
Inflatable Mandrel
Φ 400mm x 10-40m 350×530(540)mm x 10-40m
Φ 200 / Φ 220mm x 10-20m Inflatable Mandrel Φ 500mm x 10-40m 320×520(540)mm x 10-40m
Φ 240 / Φ 250mm x 15-40m Inflatable Mandrel Φ 600mm x 10-40m 350(360)×560mm x 10-40m
Φ 300 / Φ 330mm x 15-40m Inflatable Mandrel Φ 620mm x 10-40m 360×640(650)mm x 10-40m
Φ 350 / Φ 360mm x 10-40m Inflatable Mandrel Φ 700mm x 10-40m 320×520(550)mm x 10-40m

Our Inflatable Pipe Plugs & Airbags Series
Comprehensive Pipeline Sealing Solutions

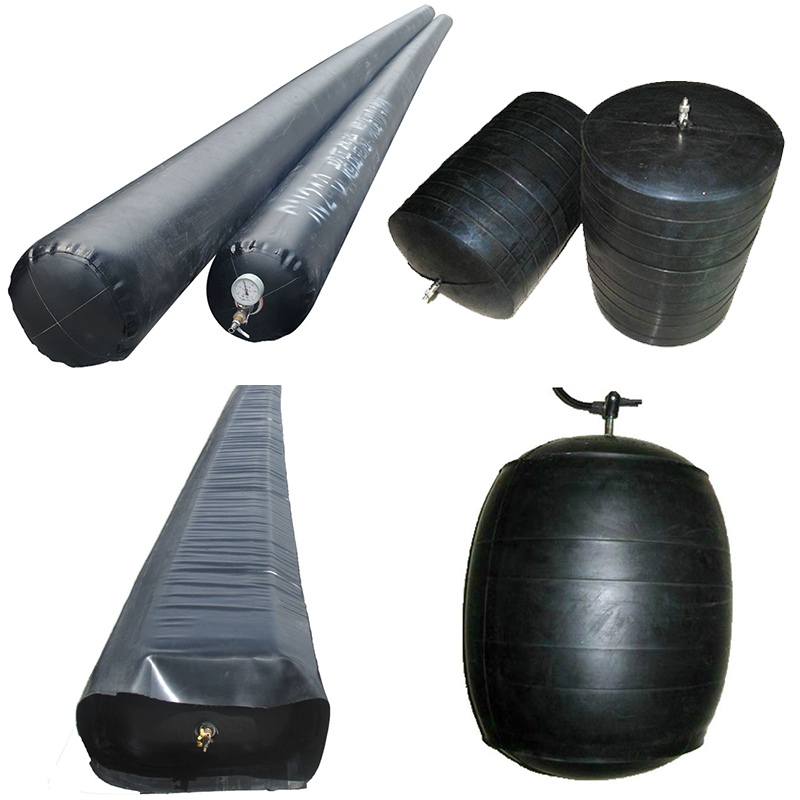

Batch of heavy-duty long concrete culvert rubber inflatable airbags and reusable rubber mandrels equipped with brass valves inside the manufacturing workshop. Multi-pipe diameter universal reducer inflatable airbags arrayed by size with pressure gauges and inflation hoses for flexible pipeline sealing.
Concrete Culvert Rubber Inflatable Airbag (Inflatable Mandrel) Multi-Pipe Diameter Universal Reducer Inflatable Airbag
Highly reusable vulcanized rubber core molds engineering-designed for hollow concrete structures, box culverts, and bridge voided slab construction formwork. Multi-size flexible sealing airbags that quickly block heavy water flow across different pipeline diameters, planes, and engineering positions.

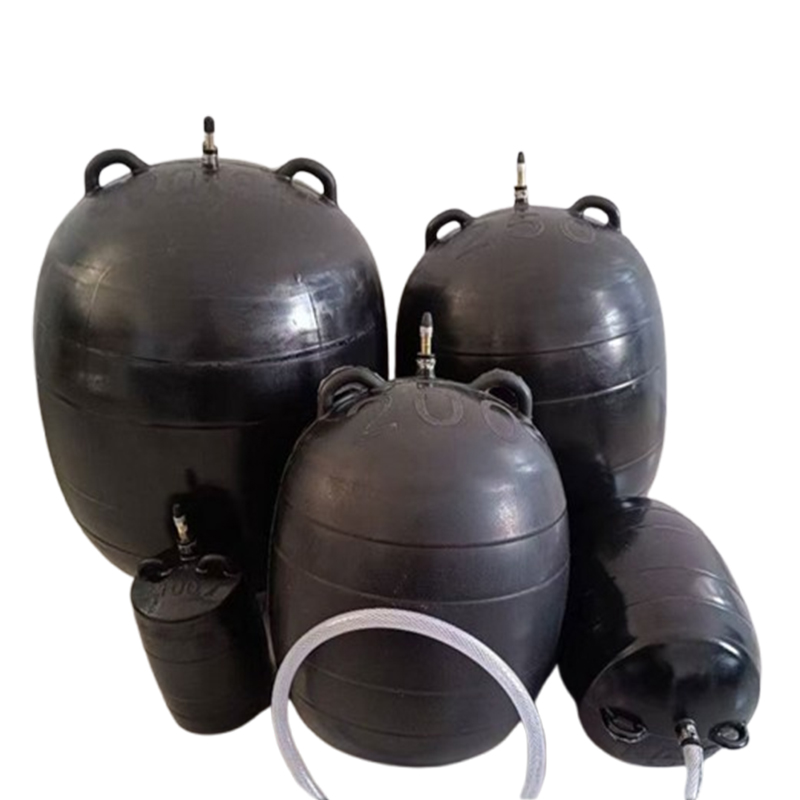

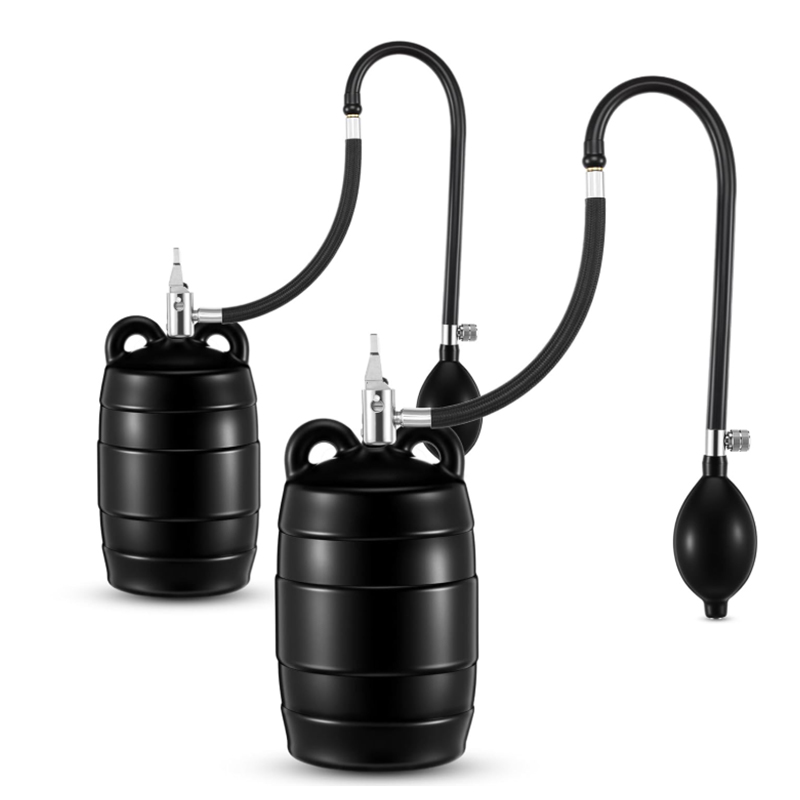

Pipeline Water Blocking Rubber Airbag Portable Hand-Inflatable Pipe Plugs
Reliable pneumatic pipe plugs designed to expand rapidly and tightly adhere to inner pipeline walls for standard municipal sewer maintenance and isolation. Lightweight, portable hand-pumped rubber balloons designed for rapid domestic plumbing sealing, residential pipeline leak testing, and low-pressure mro setups.
FAQ
FAQ
1.Are you a certified manufacturer or a trading intermediary?
Dalian Yingyu (DLYY) is a verified, fully certified engineering-grade manufacturer specializing in heavy-duty structural rubber components and industrial pneumatic formworks. We operate our own modern high-temperature vulcanization workshop and heavy-duty rubber mixing facilities, ensuring factory-direct supply, rigid quality tracking from raw compo
unds to finished mandrels, and competitive tier-pricing without middleman markups.

2. Can you accept custom dimensions based on specific project blueprints (OEM/ODM)?
Yes, custom manufacturing based on your structural blueprints, bridge design sheets, or tunnel CAD drawings is fully supported, backed by free internal CAD layout verification.

3. What is the minimum order requirement (MOQ) for your industrial rubber mandrels?
We evaluate orders on a custom project-by-project engineering matrix to provide optimal tier-pricing and maritime consolidation rather than rigid retail constraints.

4. How does your engineering team guarantee the product quality and vulcanization integrity?
Utilizing computer-controlled high-temperature vulcanization and mandatory 24-hour pressure retention testing, we eliminate air blisters and delamination.

5. Do you provide professional material documentation and compliance test certificates?
Every batch includes a Mill Test Certificate (MTC) and compound data sheets, with third-party inspections like SGS or BV available upon request.

6. What is the standard manufacturing lead time for customized inflatable rubber mandrels?
Standard catalog items dispatch in 7-10 days, while custom geometric configurations typically require 15-25 days depending on volume and vulcanization cycles.

7. What international trading and delivery terms do you accept?
We accommodate EXW, FOB, CFR, and CIF delivery terms alongside export-grade moisture-proof wrapping for global ocean freight.

8. What secure corporate payment channels and financial mechanisms do you accept?
We accept standard T/T and L/C via corporate banking, as well as VTB Bank settlements for stable regional clearing.

9. What is the warranty support and engineering service period for each airbag?
Products include a 12-month structural engineering warranty and are reusable for hundreds of cycles under proper maintenance, supported by 24/7 consulting.

Ready to Request a Technical Blueprint or Factory Catalog?
Need precise backpressure calculations, custom dimensions, or heavy-duty chemical-resistant bladders for your upcoming project? Contact our engineering support team right now for:
• Instant Quotation: Factory-direct competitive pricing provided within 2 hours.
• Technical Support: Customized dimension validation and pressure safety advice.
• Project Compliance: Complete MTC, data sheets, and SGS/BV testing arrangement.

[ Contact Us / Send Inquiry Now ]
