Pipeline Water Blocking Airbag | Inflatable Sewer Pipe Plugs

Item No.: DN50-600mm Inflatable Pipe Plug
Inflatable Pipe Plugs with superior elastic recovery, ensuring leak-proof sealing. Ideal for pipeline water blocking from DN50 to DN600mm. Inquire now for technical data sheets!
  • Product Type:
    Inflatable Pipe Plug / Pipeline Rubber Airbag
  • Applicable Pipe Diameter:
    DN50mm to DN600mm (2" to 24")
  • Structure Material:
    Rubber /Rubber With Reinforced Canvas Fiber Cloth
  • Quality Assurance:
    100% Leak Testing Before Shipping (Technical Data Sheet Available)
Description Specifications FAQ About us
Description
Inflatable Pipe Plugs Information
  Name Pipeline Water Blocking Airbag & Inflatable Sewer Pipe Plug
  Material Rubber /Rubber With Reinforced Canvas Fiber Cloth
  Diameter
DN50mm - DN600mm (2" to 24")
  Shape Circular/Round, Rectangular, Oval Etc.
  Color
Black, Green, or Customized
  Surface Treatment Ribbed/Gritted or Smooth
  Length Customized Length
  Application Pipeline Sealing And Closed Water Test
  Feature
High Strength And High Pressure Resistance
  Pressure Capacity 0.03 - 0.06 MPa
Inflatable Pipe Plug Banner
* Efficient Isolation: Seal off pipeline sections safely and efficiently to enable fast maintenance, repair, or installation work.
* Universal Application: Ideal for reliable water blocking, flow isolation, and leak locating in sewers, drainage systems, pipelines, and gullies.
* Customization Options: Formulated with high-quality rubber with reinforced canvas fiber cloth to ensure high durability. Alternative materials (such as NBR, CR, or EPDM) can be customized upon request to meet specific medium requirements.
* Comprehensive Size Range: Available for standard pipe diameters from DN50mm to DN600mm (2" to 24").
* Pneumatic Performance: Engineered as professional pneumatic stoppers (also known as pipeline rubber airbags) providing stable sealing and blockage performance under operational pressures.
* Broad Temperature Tolerance: Built for reliable performance in underground and pipe environments ranging from -40°C (-40°F) to 70°C (158°F).
* Reliable Corrosion Proofing: Designed to offer dependable wear resistance and strong proofing against municipal wastewater and common chemical elements.

Applications
inflatable-pipe-plugs-and-rubber-airbags-applications


Our Advantages

 *
Exceptional Reusability: Highly cost-effective and engineered for longevity, allowing for hundreds of safe deployment and inflation cycles.
 *
Superb Structural Support: Provides uniform expanding pressure and reliable continuous contact against inner pipe walls to ensure 100% airtight and leak-proof isolation.
 *
Compact Storage & Portability: Soft, high-flexibility rubber structure shrinks and folds down tightly when deflated, allowing for easy transportation and minimal storage space.
 *
Economical Maintenance Fit: Eliminates the need for installing complex or heavy mechanical valves, offering a highly agile and low-cost alternative for temporary sealing.
* Efficient On-Site Setup: Light and highly adaptable, creating optimal workflow conditions for rapid installation and immediate fluid blocking on drainage infrastructure sites.

Method & Attention
Method:
* Pre-Use Inspection: Inflate the airbag slightly before insertion to check for any potential air leaks.

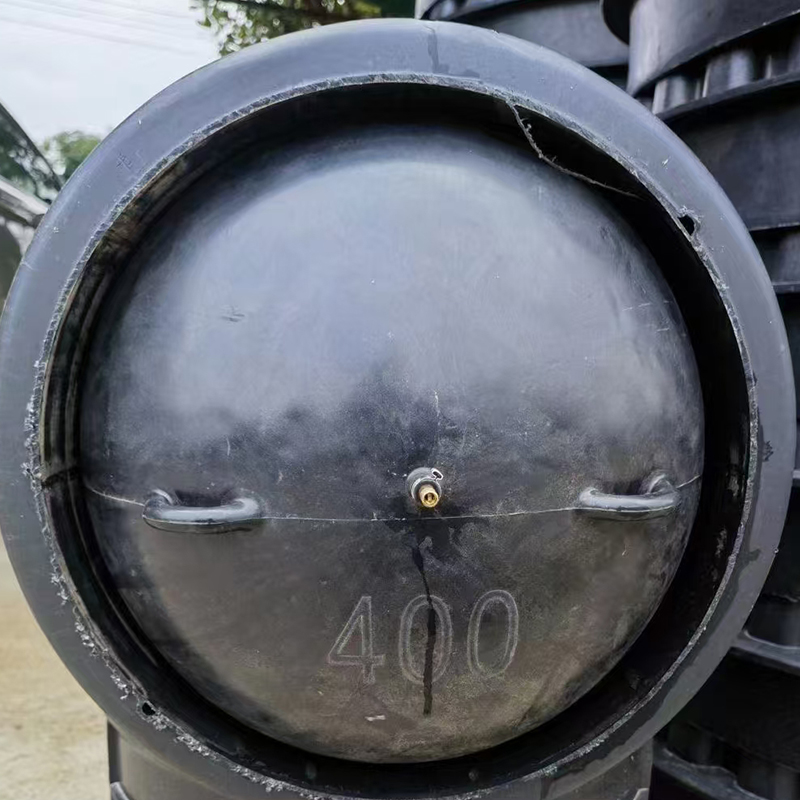

* Placement & Inflation: Open the pipeline inspection port, slowly lower the plug to the designated position, and then inflate it to the rated working pressure.
* Deflation & Removal: After completing the pipeline inspection or maintenance, fully deflate the airbag and carefully remove it from the pipeline.
Attention:
* Pipe Preparation: The inner wall of the pipe must be clean and smooth, free of burrs or sharp debris, otherwise it may compromise the sealing performance or puncture the rubber airbag.
* Proper Sizing: The inflatable plug must match the corresponding pipe size. Avoid under-sized deployment (do not use a smaller airbag in a larger pipe).
*
Avoid Pipe Seams: The airbag should not be positioned directly across multi-segment pipe joints or structural seams, as surface irregularities can cause air bypass or seal failure.
*
Anti-Overinflation: Strictly prohibit over-inflation beyond the rated pressure limits; pressure should be applied gradually until the water flow is stably blocked.

Download the PIPELINE WATER BLOCKING AIRBAG CATALOG for the details.
Specifications

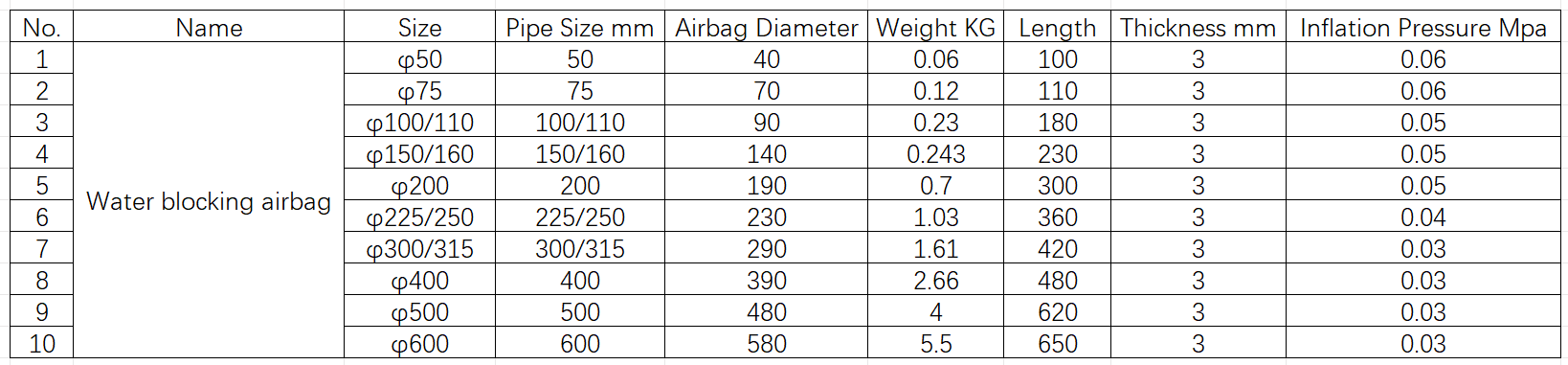

Inflatable Pipe Plugs Specifications
No. Name Size Pipe Size
mm
Airbag Diameter Weight
KG
Length Thickness
mm
Inflation Pressure
Mpa
1


Water blocking airbag






φ50 50 40 0.06 100 3 0.06
2 φ75 75 70 0.12 110 3 0.06
3 φ100/110 100/110 90 0.23 180 3 0.05
4 φ150/160 150/160 140 0.243 230 3 0.05
5 φ200 200 190 0.7 300 3 0.05
6 φ225/250 225/250 230 1.03 360 3 0.04
7 φ300/315 300/315 290 1.61 420 3 0.03
8 φ400 400 390 2.66 480 3 0.03
9 φ500 500 480 4 620 3 0.03
10 φ600 600 580 5.5 650 3 0.03

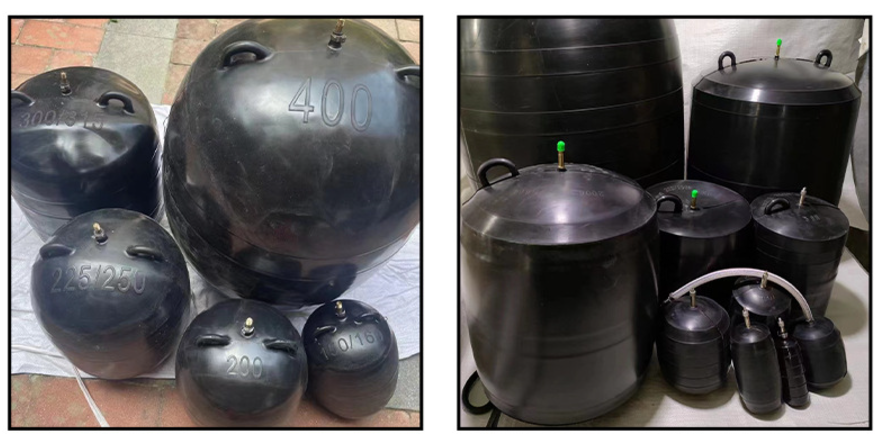

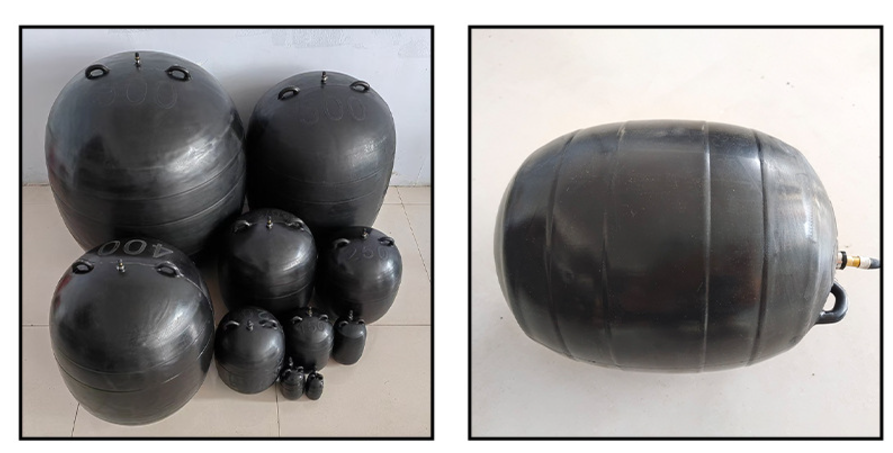

Our Inflatable Pipe Plugs & Airbags Series
Comprehensive Pipeline Sealing Solutions
Concrete Inflatable Rubber Mandrels Multi-Size Inflatable Pipe Plugs
• Designed as reusable internal molds for casting hollow concrete structures in bridge and culvert construction.

• Highly flexible, easy to deflate, and significantly reduces site labor costs.
• Versatile, cost-effective sealing solution designed to expand and fit multiple nominal pipe diameters (e.g., from 2" to 24").
• Allows contractors to safely seal different pipe sizes using a single, multi-size rubber plug to reduce inventory.
Pipeline Water Blocking Airbag & Inflatable Sewer Pipe Plug Portable Hand-Inflatable Pipe Plugs
• Engineered for reliable temporary water blocking and leak isolation in municipal sewer lines and drainage pipes.
• Features superior abrasion resistance and stable sealing performance under standard operating pressures.
• Equipped with a self-contained hand pump and inflation hose for quick, tool-free deployment.

• Ideal for residential plumbing maintenance, rapid localized isolation, and small-diameter pipe testing.
FAQ
FAQ
1.
Are you a certified manufacturer or a trading intermediary?
Dalian Yingyu (DLYY) is a verified, fully certified engineering-grade manufacturer specializing in advanced pipeline isolation components and industrial pneumatic stoppers. We operate our own dedicated rubber blending and precise fabric-reinforcement assembly facilities, ensuring factory-direct supply, rigid tracking from premium compounds to finished pipeline airbags, and competitive tier-pricing without middleman markups.

2. Can you accept custom dimensions based on specific municipal or industrial project blueprints (OEM/ODM)?
Yes, custom manufacturing tailored to your specific pipeline geometry, specialized chemical media, or unique pressure-holding requirements is fully supported. We can adjust rubber formulations (such as upgrading to NBR, CR, or EPDM) and dimension configurations based on your technical submittals, backed by free engineering layout verification.

3. What is the standard product range and minimum order requirement (MOQ) for your pipeline airbags?
Our standard product line spans nominal diameters from DN50mm to DN600mm (2" to 24" pipe sizes). To best support municipal maintenance contractors and industrial distributors, we evaluate orders on a project-by-project matrix to provide optimal maritime consolidation and tier-pricing rather than enforcing rigid retail constraints.

4. How does your engineering team guarantee inflation safety and structural integrity under line pressure?
Every inflatable pipe plug is built with premium rubber integrated with high-tensile reinforced canvas fiber cloth to withstand continuous back-pressure. Prior to dispatch, 100% of our products undergo a mandatory, multi-hour pressure retention and leak-proof sealing test to completely eliminate structural air bypass, ensuring stable performance within underground drainage environments.

5. Do you provide professional material documentation and compliance technical data sheets?

Yes. Every commercial batch is accompanied by comprehensive Technical Data Sheets (TDS) and material compound specifications. Third-party testing and factory inspections by international bodies such as SGS or BV can be seamlessly arranged upon project request to satisfy strict local compliance.

6. What is the standard manufacturing lead time for customized pipeline water blocking airbags?
Standard catalog sizes (DN50-600mm) typically dispatch within 7–10 days. Customized geometric configurations or specialized chemical-resistant batches generally require 15–25 days, depending on the volume, customized sizing, and factory testing schedules.

7. What international trading and delivery terms do you accept for global shipping?
We fully accommodate EXW, FOB, and CIF delivery terms. All shipments are packed using export-grade, moisture-proof, and abrasion-resistant heavy-duty wrapping to guarantee the structural integrity of the rubber during long-distance global ocean freight and transit.

8. What secure corporate payment channels and financial mechanisms do you accept?
We accept standard T/T and L/C via corporate banking, as well as VTB Bank settlements for stable regional clearing.

9. What warranty support and engineering service period do you provide for these pipeline plugs?
Products include a 12-month structural engineering warranty and are reusable for hundreds of cycles under proper maintenance, supported by 24/7 consulting.

Ready to Request a Technical Blueprint or Factory Catalog?
Need precise backpressure calculations, custom dimensions, or customized pipeline sealing solutions for your upcoming project? Contact our engineering support team right now for:
• Instant Quotation: Factory-direct competitive pricing provided within 2 hours.
• Technical Support: Customized dimension validation and pressure safety advice.
• Project Compliance: Complete MTC, data sheets, and SGS/BV testing arrangement.
