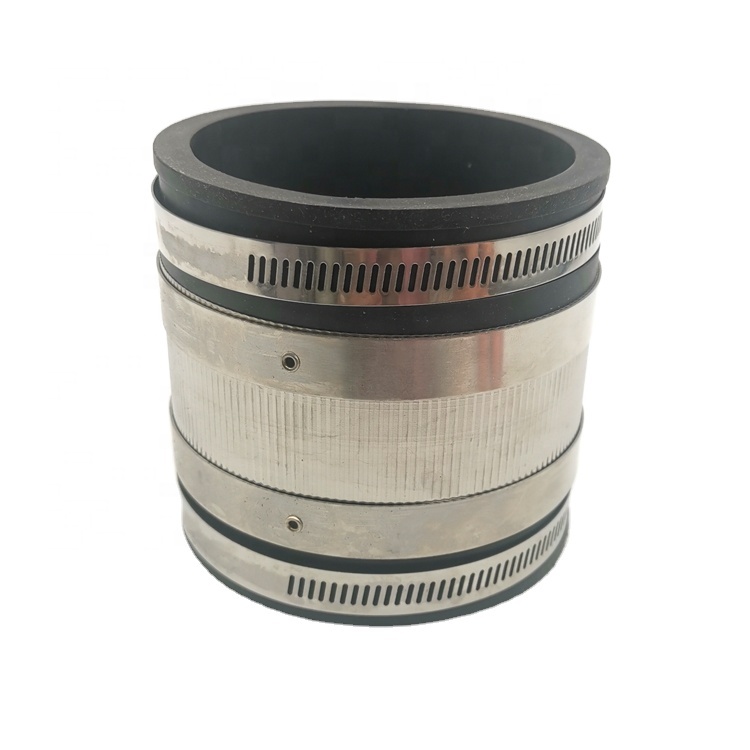

Flexible Pipe Coupling for Abrasive Media

　　In industrial settings, the movement of abrasive media—such as slurries, granular solids, or corrosive chemicals—poses unique challenges for piping systems. Traditional rigid couplings often fail prematurely due to wear, vibration, or misalignment, leading to costly downtime and maintenance. Flexible pipe couplings have emerged as a robust solution, offering durability, adaptability, and ease of installation. This article explores how these couplings work, their benefits, and key considerations for selecting the right option for abrasive media applications.

　　Understanding Abrasive Media and Its Impact on Piping Systems

　　Abrasive media, by nature, erode materials over time. Sand, gravel, mineral slurries, and even certain industrial chemicals can wear down pipe walls, seals, and joints. This degradation is exacerbated by factors like high flow rates, pressure fluctuations, and temperature variations. Rigid couplings, which lack give, are prone to cracking or leaking when subjected to the stress of abrasive flow. The result? Frequent repairs, lost productivity, and safety hazards.

　　Flexible couplings mitigate these risks by absorbing shock, compensating for misalignment, and reducing stress on connected pipes. Their design allows for slight movements without compromising the seal, making them ideal for environments where abrasion and vibration are constant threats.

　　The Mechanics of Flexible Pipe Couplings

　　Flexible couplings typically consist of a reinforced elastomeric sleeve or bellows, reinforced with metal rings or flanges for structural integrity. The elastomer—often a durable rubber or synthetic compound—resists abrasion while maintaining flexibility. Here’s how they function:

　　Shock Absorption: The coupling’s flexibility dampens vibrations caused by pumps, valves, or abrasive particle collisions.

　　Misalignment Compensation: Pipes often shift due to thermal expansion or ground settlement. Flexible couplings accommodate angular, parallel, or axial misalignment, preventing leaks.

　　Seal Integrity: Advanced designs incorporate multi-layer seals or gaskets to contain abrasive media and prevent external leakage.

　　For abrasive applications, couplings may feature reinforced liners or abrasion-resistant coatings to extend service life.

　　Key Advantages of Flexible Couplings in Abrasive Media Systems

　　Reduced Maintenance Costs: By minimizing wear and tear, flexible couplings reduce the frequency of replacements and repairs. This is particularly valuable in industries like mining, wastewater treatment, and chemical processing, where downtime is expensive.

　　Enhanced System Longevity: The ability to absorb stress and misalignment preserves the integrity of the entire piping network, not just the coupling.

　　Ease of Installation: Flexible couplings are often lighter and simpler to install than rigid alternatives, requiring fewer specialized tools or skilled labor.

　　Noise Reduction: Dampening vibrations also lowers operational noise, improving workplace safety and comfort.

　　Adaptability: They can be used across various pipe materials (e.g., steel, PVC, HDPE) and diameters, offering versatility in system design.

　　Selecting the Right Flexible Coupling for Abrasive Media

　　Not all flexible couplings are created equal. When choosing one for abrasive applications, consider:

　　Material Compatibility: The elastomer must resist chemical degradation and abrasion. For example, nitrile rubber (NBR) excels in oil-based slurries, while EPDM is better for acidic environments.

　　Pressure and Temperature Ratings: Ensure the coupling can handle the system’s operating conditions without deforming or failing.

　　Size and Configuration: The coupling must match the pipe’s outer diameter and allow for the required movement range.

　　Certifications: Look for industry standards (e.g., ASTM, ISO) to guarantee quality and safety.

　　Consulting with a coupling manufacturer or engineer is advisable to tailor the selection to specific needs.

　　Installation and Maintenance Best Practices

　　Proper installation is critical to maximizing a flexible coupling’s lifespan:

　　Align Pipes Correctly: While flexible couplings accommodate misalignment, excessive deviation can still strain the system. Use alignment tools during installation.

　　Tighten Bolts Evenly: Follow the manufacturer’s torque specifications to avoid over-tightening, which could damage the coupling.

　　Inspect Regularly: Schedule periodic checks for signs of wear, such as cracks in the elastomer or leaks. Replace couplings at the first sign of damage.

　　Lubricate Moving Parts: If applicable, apply non-abrasive lubricants to bolts or flanges to prevent seizing.

　　Case Studies: Flexible Couplings in Action

　　Mining Industry: A gold processing plant in Nevada replaced rigid couplings with flexible ones in its slurry transport lines. The result? A 60% reduction in coupling failures and 40% lower maintenance costs over two years.

　　Wastewater Treatment: A municipal facility in Texas struggled with leaks in its grit removal system. Flexible couplings with abrasion-resistant liners eliminated leaks and extended the life of adjacent pipes.

　　Chemical Manufacturing: A plant handling corrosive slurries adopted high-temperature flexible couplings, reducing noise by 20 decibels and improving worker safety.

　　Future Trends in Flexible Coupling Technology

　　As industries demand greater efficiency and sustainability, flexible couplings are evolving:

　　Smart Couplings: Some manufacturers are integrating sensors to monitor wear, pressure, and temperature in real time, enabling predictive maintenance.

　　Eco-Friendly Materials: Biodegradable elastomers and recyclable metal components are gaining traction to reduce environmental impact.

　　Customization: 3D printing and advanced molding techniques allow for bespoke couplings tailored to unique applications.

　　Conclusion

　　Flexible pipe couplings are a game-changer for industries handling abrasive media. By combining durability, adaptability, and ease of use, they help reduce costs, improve safety, and extend the lifespan of piping systems. As technology advances, these couplings will become even more integral to resilient industrial infrastructure. For operators seeking reliable, low-maintenance solutions, investing in the right flexible coupling is a step toward smarter, more sustainable operations.
