How Do Flexible Pipe Couplings Absorb Thermal Expansion?

Piping systems are the unsung heroes of modern infrastructure, quietly transporting water, steam, gases, and chemicals across industries ranging from residential plumbing to industrial manufacturing. Yet, these systems face a silent challenge: temperature fluctuations. As materials heat up or cool down, they expand or contract, creating stress that can lead to leaks, cracks, or catastrophic failures. Enter flexible pipe couplings—a clever engineering solution designed to absorb thermal expansion while maintaining system integrity. But how exactly do these unassuming components work their magic? Let’s explore the science, design, and real-world applications of flexible couplings in managing thermal stress.

The Invisible Threat: Thermal Expansion in Piping Systems

When temperatures rise, metal pipes—commonly used for their durability—expand. For example, a 100-foot steel pipe exposed to a 100°F temperature increase can stretch by over 1 inch. While this seems minor, uneven expansion or rigid connections can create immense pressure at joints, valves, or supports. Over time, this stress weakens components, leading to costly repairs or safety hazards.

Traditional rigid couplings, which fix pipes in place, offer no relief for this expansion. In contrast, flexible couplings act as shock absorbers, allowing controlled movement without compromising the system’s seal or structural stability.

The Core Mechanism: How Flexible Couplings Bend Without Breaking

Flexible pipe couplings rely on a combination of materials and design to manage thermal stress. Most feature a corrugated or bellows-like structure made from elastomers (rubber-like materials) or metals like stainless steel. These materials have two critical properties:

Elasticity: They stretch or compress under pressure but return to their original shape.

Corrosion resistance: They withstand exposure to moisture, chemicals, and extreme temperatures.

When a pipe expands, the coupling’s flexible section compresses or elongates, absorbing the movement. For instance, a corrugated metal coupling might expand like an accordion, while an elastomer coupling bends slightly to accommodate shifts. This flexibility prevents force from transferring to rigid components, such as flanges or pumps, which could otherwise fail.

Material Matters: Choosing the Right Coupling for the Job

Not all flexible couplings are created equal. The choice of material depends on the system’s operating conditions:

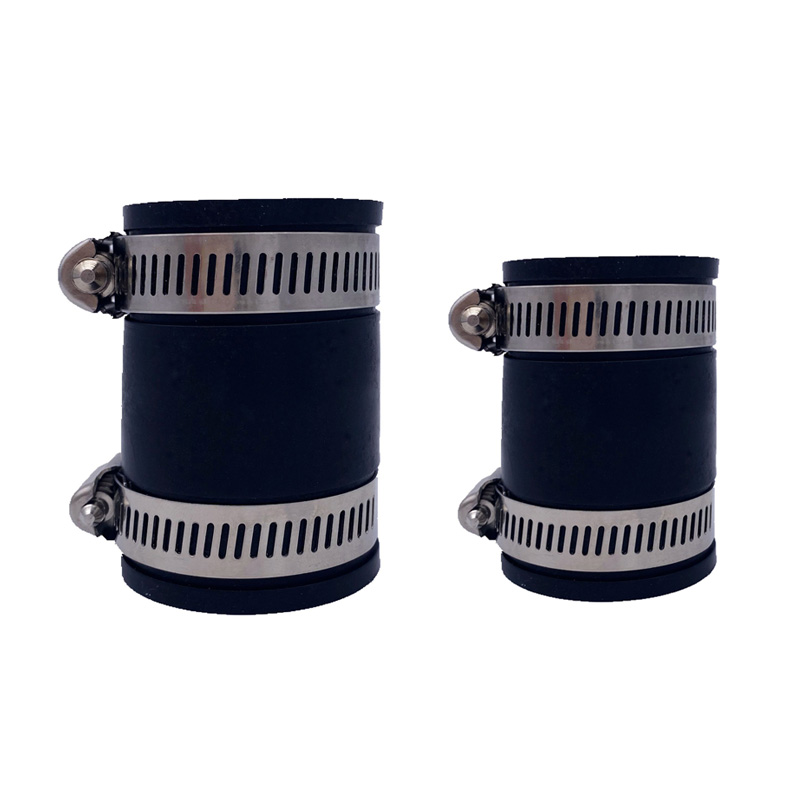

Elastomer couplings: Ideal for low-pressure applications like residential plumbing or HVAC systems. They’re affordable, quiet, and resistant to minor vibrations.

Metal couplings: Used in high-temperature, high-pressure environments, such as steam lines or chemical processing plants. Stainless steel or bronze alloys handle extreme conditions without degrading.

Composite couplings: Combine metal and elastomer layers for balanced flexibility and durability, often seen in industrial settings where both heat and chemicals are present.

Engineers must also consider the coupling’s temperature range. For example, a silicone-based elastomer might withstand -60°F to 400°F, while a metal bellows could handle temperatures exceeding 1000°F.

Beyond Thermal Expansion: Additional Benefits of Flexible Couplings

While managing heat-induced stress is their primary role, flexible couplings offer secondary advantages:

Vibration dampening: They reduce noise and wear caused by machinery or flowing fluids.

Misalignment compensation: Pipes are rarely perfectly straight. Flexible couplings accommodate slight angular or parallel misalignments, simplifying installation.

Seismic resilience: In earthquake-prone regions, couplings allow pipes to sway without snapping, preventing water main breaks or gas leaks.

These features make flexible couplings a cost-effective investment, extending the lifespan of piping systems and reducing maintenance downtime.

Real-World Applications: From Skyscrapers to Power Plants

Flexible couplings are ubiquitous in modern infrastructure. Consider these examples:

Commercial buildings: HVAC systems use elastomer couplings to absorb thermal expansion in chilled water or steam pipes, ensuring consistent climate control.

Power generation: In coal or nuclear plants, metal bellows couplings manage the extreme heat of boiler feedwater lines, preventing ruptures that could halt operations.

Municipal water systems: Composite couplings in underground mains tolerate soil movement and temperature shifts, minimizing leaks that waste millions of gallons annually.

Even everyday appliances like dishwashers and washing machines rely on small flexible hoses to prevent leaks when hot water cycles cause pipes to expand.

Installation and Maintenance: Best Practices for Longevity

To maximize a coupling’s lifespan, proper installation is key:

Avoid over-tightening: Excessive force can crush elastomer couplings or misalign metal ones.

Check compatibility: Ensure the coupling’s material suits the fluid being transported (e.g., avoid rubber in oil pipelines).

Inspect regularly: Look for cracks, corrosion, or leaks, especially in high-stress areas.

While flexible couplings are low-maintenance, periodic inspections prevent minor issues from escalating. For example, a worn elastomer coupling might leak water, signaling it’s time for replacement.

The Future of Flexible Couplings: Innovation on the Horizon

As industries push boundaries, coupling technology evolves. Recent advancements include:

Smart sensors: Embedded in couplings, these devices monitor stress levels in real time, alerting operators to potential failures before they occur.

3D-printed designs: Customizable couplings tailored to unique piping layouts reduce waste and improve efficiency.

Eco-friendly materials: Biodegradable elastomers or recycled metals aim to reduce environmental impact without sacrificing performance.

These innovations promise safer, more sustainable piping systems for generations to come.

Conclusion

Flexible pipe couplings are a testament to engineering ingenuity, transforming a potential weakness—thermal expansion—into a manageable phenomenon. By combining the right materials, designs, and installation practices, these components protect infrastructure from the unseen forces of heat and pressure. As technology advances, their role in ensuring reliable, efficient, and safe piping systems will only grow. Whether in a skyscraper, power plant, or your home, flexible couplings quietly keep the world flowing—one controlled movement at a time.
