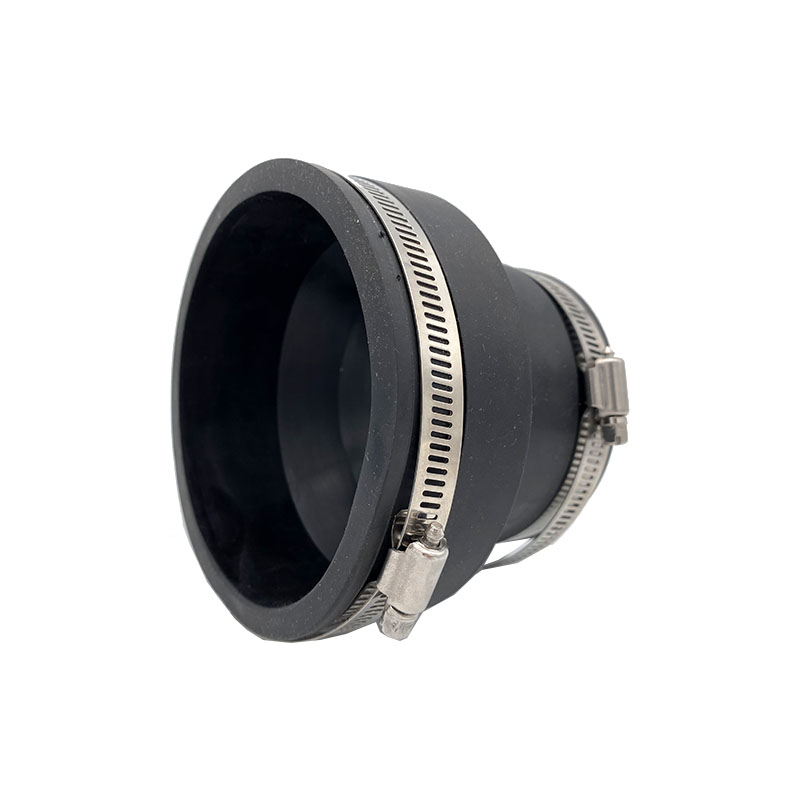

How Do Flexible Pipe Couplings Handle Pipe Movement?

When it comes to plumbing, HVAC systems, or industrial pipelines, pipes are rarely static. Temperature fluctuations, ground shifts, or even vibrations from machinery can cause pipes to expand, contract, or misalign. Traditional rigid couplings might crack or leak under such stress, but flexible pipe couplings are designed to adapt. These unassuming components play a critical role in maintaining system integrity, yet their mechanics remain a mystery to many. Let’s explore how flexible couplings manage pipe movement and why they’re indispensable in modern infrastructure.

The Science of Pipe Movement: Why Flexibility Matters

Pipes are dynamic structures. For example, hot water flowing through a pipe causes it to expand, while cold temperatures make it contract. In underground systems, soil settling or seismic activity can shift pipes laterally. Even everyday vibrations from pumps or motors create micro-movements. Without flexibility, these forces lead to cracks, joint failures, or catastrophic leaks.

Flexible couplings act as shock absorbers, accommodating movement without compromising the seal. Unlike rigid couplings, which rely on precise alignment, flexible designs use materials and engineering principles that allow for angular, parallel, or axial shifts. This adaptability extends the lifespan of piping systems by reducing stress on joints and surrounding components.

Material Innovation: The Backbone of Flexibility

The secret to flexible couplings lies in their construction materials. Most modern designs incorporate elastomers—synthetic rubbers or thermoplastics known for their elasticity and durability. These materials can stretch, compress, and return to their original shape without degrading.

For instance, couplings used in high-temperature environments might feature silicone or fluorocarbon elastomers, which resist heat degradation. In contrast, systems handling chemicals or wastewater may rely on nitrile rubber or EPDM for their corrosion resistance. The choice of material ensures the coupling performs reliably under specific conditions, whether it’s managing thermal expansion in a factory or withstanding ground movement in a residential plumbing system.

Design Diversity: How Couplings Adapt to Different Movements

Not all pipe movements are equal, and flexible couplings come in varied designs to address specific challenges:

Angular Misalignment: When pipes bend at an angle due to settling or thermal expansion, couplings with a wide angular range—often up to 5° or more—prevent leaks by maintaining a tight seal even when pipes aren’t perfectly aligned.

Parallel Offset: If pipes shift sideways, couplings with a split-body design or reinforced sleeves can bridge gaps up to several inches, ensuring continuity without rigid constraints.

Axial Movement: Pipes that lengthen or shorten due to temperature changes require couplings with telescoping features or accordion-like folds that compress or extend as needed.

Some advanced models combine these features, offering multi-directional flexibility. This versatility makes them ideal for complex systems like those found in commercial buildings, where pipes traverse multiple floors and encounter varying stress points.

Installation Ease: A Practical Advantage

One of the most significant benefits of flexible couplings is their simplicity. Unlike rigid systems that demand precise measurements and alignment, flexible couplings can compensate for minor installation errors. For example, if a pipe is cut slightly too short or installed at a slight angle, a flexible coupling can still create a secure connection.

This ease of use reduces labor costs and speeds up projects. Contractors no longer need to dismantle entire sections to correct misalignments; a flexible coupling can often resolve the issue in minutes. Additionally, many designs feature tool-free installation, with clamps or bolts that tighten by hand, making them accessible for DIY enthusiasts tackling home repairs.

Durability Under Pressure: Withstanding Environmental Stressors

Flexible couplings aren’t just about movement—they must also endure environmental challenges. UV exposure, ozone, and chemicals can degrade materials over time, leading to brittleness or cracks. To combat this, manufacturers reinforce elastomers with fabric or metal sleeves, enhancing their resistance to abrasion and pressure.

For outdoor applications, UV-resistant coatings protect against sunlight, while stainless steel components resist corrosion in humid or saltwater environments. In industrial settings, couplings may include flame-retardant additives to meet safety standards. These enhancements ensure couplings remain reliable even in harsh conditions, minimizing maintenance and replacement costs.

Cost-Effectiveness: Long-Term Savings Over Rigid Alternatives

While flexible couplings may have a slightly higher upfront cost than rigid ones, their long-term benefits justify the investment. By reducing the risk of leaks and joint failures, they prevent costly water damage, downtime, or environmental hazards. In industrial facilities, a single leak can halt production and incur thousands of dollars in repairs—a scenario flexible couplings help avoid.

Moreover, their adaptability extends the life of existing piping systems. Instead of replacing entire sections to accommodate ground movement or thermal expansion, engineers can install flexible couplings at strategic points, saving time and resources. This makes them a sustainable choice for both new constructions and retrofits.

Conclusion: The Unsung Heroes of Modern Piping

Flexible pipe couplings are a testament to engineering ingenuity, transforming how systems handle movement and stress. Their ability to adapt to dynamic environments—whether in a residential basement or a sprawling industrial complex—ensures reliability, safety, and efficiency. By combining innovative materials, thoughtful design, and ease of use, these components address challenges that rigid alternatives simply cannot.

As infrastructure ages and climate patterns shift, the demand for resilient piping solutions will only grow. Flexible couplings, with their quiet yet critical role, will remain at the forefront of this evolution, proving that sometimes, flexibility is the strongest defense against chaos.
