Name: High Pressure Hydraulic Hose
Brand: DALIAN YINGYU
SKU: 00264
Availability: InStock
Rating: 5 (1 reviews)

Home > Hydraulic Hose

Description Specifications FAQ About us

Description

Spiral Hydrulic Hose Information

	Name	High Pressure/High Temperature Resistant and Oil Resistant Flexible Steel Wire Braided Reinforced Wound Hydraulic Spiral Wrap Rubber Hose Pipe
	Material	Synthetic Rubber+ Steel
	Processing Service	Moulding,Cutting
	Reinforcement	Steel Wire Braided
	Reinforcement Layer	1/2/3/4/5/6 Ply
	Color	Blue, Black, Red, Green, Customized
	Size	1/4" - 2", Customized
	Working Pressure	0.3-1.2MPA
	Certification	ISO
	Feature	Resistant to Ultra-High Temperature and Pressure
	Application	Chemical Industry, The Petroleum Industry and The Steel Industry
	Service	OEM, ODM, Customized

High-pressure Steel Wire Braided Wound Hydraulic Spiral Rubber Hose
Product Introduction:
The high-pressure steel wire spiral hydraulic hose mainly consists of an inner rubber layer, a middle rubber layer, multiple alternating spiral steel wire reinforcement layers, and an outer rubber layer. The inner rubber layer is made of wear-resistant, oil-resistant, and corrosion-resistant synthetic rubber material, which ensures the purity of the oil during transmission. The steel wire spiral reinforcement layer is the key to the hose's high-pressure resistance; multi-layer steel wire spiraling significantly enhances the hose's pressure-bearing capacity and burst resistance. The outer rubber layer protects the internal structure and resists external environmental erosion.

Spiral Hydrulic Hose Feature

Product Features:
• Strong pressure resistance: Capable of withstanding high working pressure, with a maximum working pressure range of 70-120 Mpa.
• Excellent fatigue resistance: Not easily damaged under repeated reciprocating movement, bending, and other conditions.
• Good temperature resistance: Operating temperature range is -40℃～120℃.
• High flexibility: Possesses excellent flexibility, adapting to different installation environments.
• Superior flexing and aging resistance: The hose is made of special synthetic rubber compounds, featuring good oil resistance, heat resistance, and aging resistance.

Product Advantages:
• Strong pressure-bearing capacity, suitable for high-pressure, large-flow hydraulic systems.
• Excellent fatigue resistance, ensuring a long service life.
• Good temperature resistance, enabling operation within a wide temperature range.
• High flexibility, facilitating installation and layout.

Applications

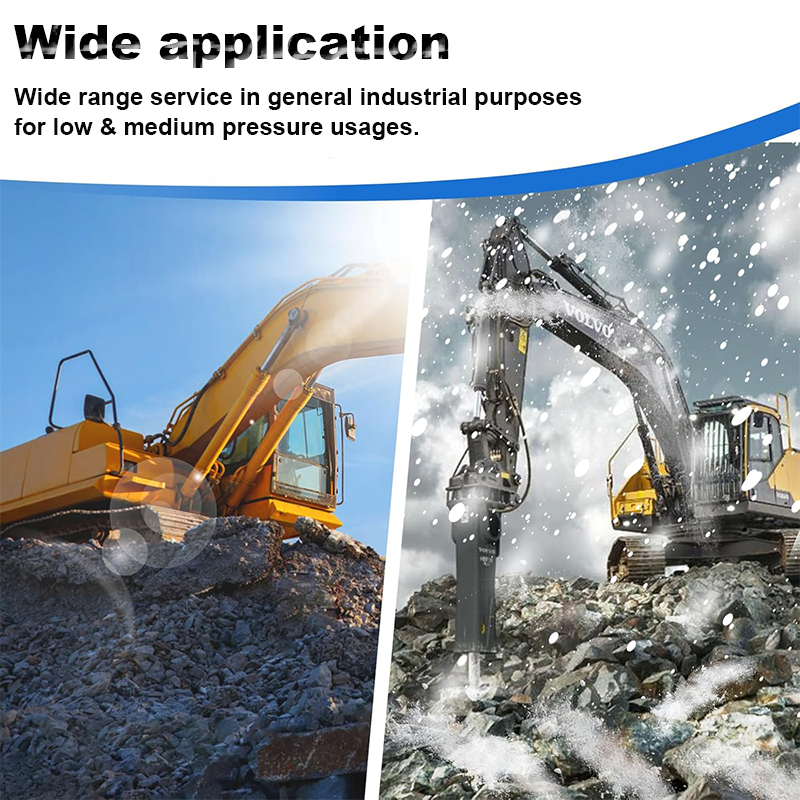

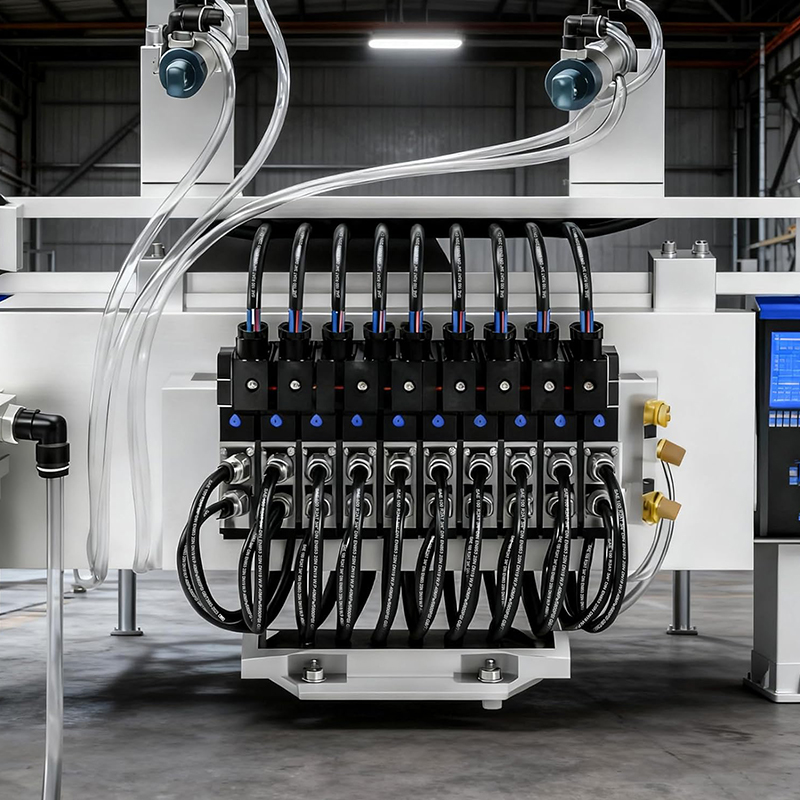

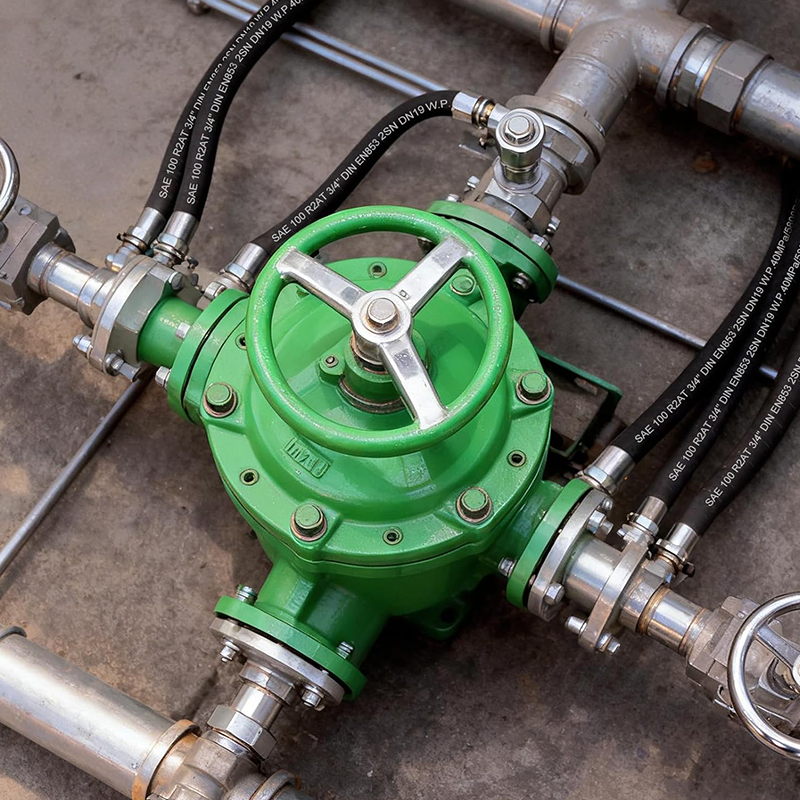

• Wide application: Mainly used in mine hydraulic supports and oilfield development; also applicable in engineering construction, lifting and transportation, metallurgical forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools, and mechanized/automated hydraulic systems in various industrial sectors to convey petroleum-based and water-based liquids with a certain pressure and temperature.
• Diverse specifications: Product specifications range from DN6mm to DN305mm.
• Multiple connection methods: Usually adopts threaded connection, clamp connection, etc.

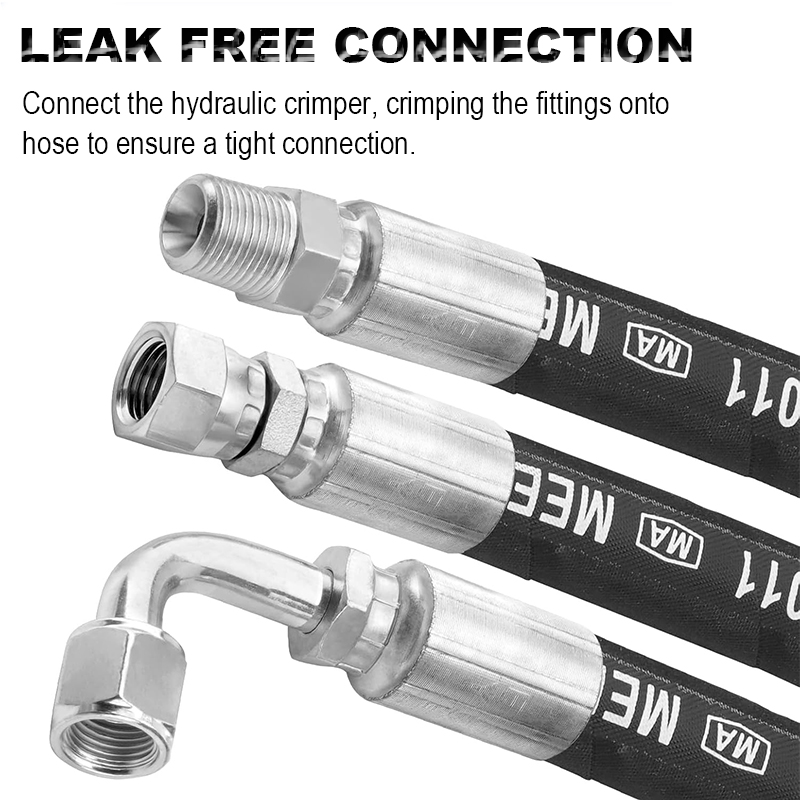

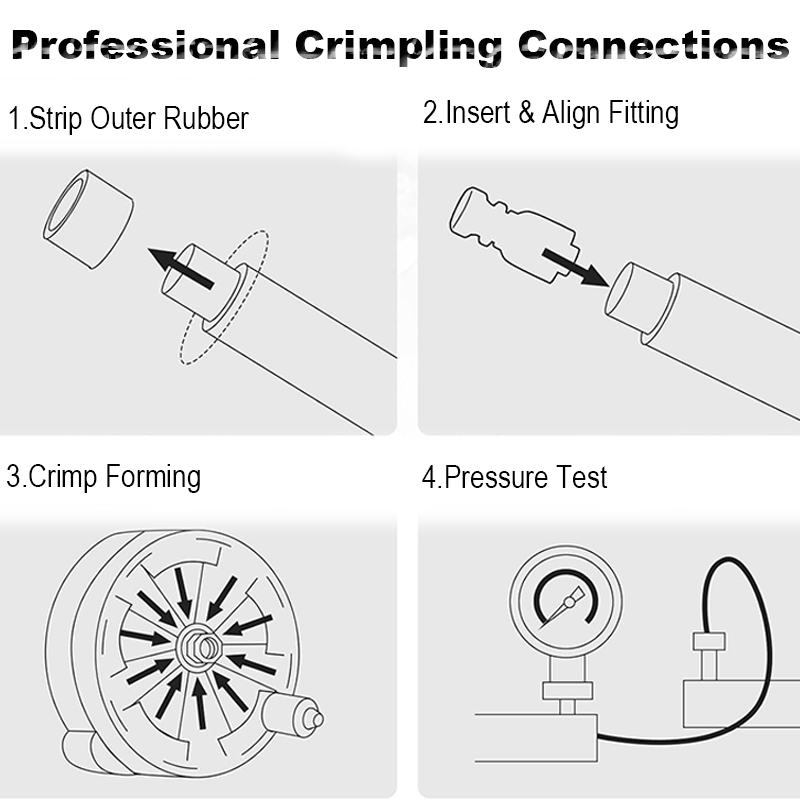

About Hydrulic Rubber Hose Connections

Our Spiral Hydrulic Hose Advantages

	*Professional:Focused on manufacturing rubber seal for more than 20 years.
	*Multi-kinds of mold:We can provide samples and molds. Products with different shapes, colors, and special performance requirements can all meet the needs of design and use.
	*Customized:You can customize the shape and size you want.
	*Our Service: 1.Our core competency lies in our team of professional designers and project engineers, who craft precise solutions based on a thorough analysis of client needs. 2.We oversee the installation and construction process while delivering dedicated technical support. 3.24-hour online service.
	*Reasonable and competitive price.
	*We have extensive experience across diverse project applications.

Download the HYDRAULIC HOSE CATALOG and HYDRAULIC HOSE FITTING CATALOG for the details.

Specifications

Product Size

Various Size to Choose
Hose size	Inside Diameter mm	Reinfor cement Diameter mm	Outside Diameter mm	Working Pressure Mpa		Proof Pressure Mpa		Burst Pressure Mpa		Min.Bend Radius mm	Weight Kg/m
Hose size	Inside Diameter mm	Reinfor cement Diameter mm	Outside Diameter mm	Mpa	Psi	Mpa	Psi	Mpa	Psi	Min.Bend Radius mm	Weight Kg/m
6*4sp	6±0.5	14.4±0.8	19±1.0	100	14490	150	21735	210	30429	130	0.65
8*4sp	8±0.5	16.4±0.8	20.5±1.0	80	11592	120	17388	210	30429	145	0.85
10*4sp	10±0.5	19.2±0.8	24±1.0	70	10143	105	15215	210	30429	160	1.03
13*4sp	13±0.5	22.2±0.8	27±1.0	60	8694	90	13041	180	26082	210	1.12
16*4sp	16±0.5	26±0.8	30±1.0	55	7970	82.5	11954	165	23910	260	1.72
19*4sp	19±0.5	30±0.8	35±1.5	46	6665	69	9998	140	20286	280	2.08
22*4sp	22±0.5	33±0.8	37±1.5	40	5796	60	8694	120	17388	320	2.39
25*4sp	25±0.8	36±0.8	41±1.5	35	5072	52.5	7607	112	16230	360	2.51
32*4sp	32±0.8	44±0.8	49±1.5	32	4637	46	6665	96	13910	460	3.12
38*4sp	38±1.8	50.8±1.0	56±1.5	25	3623	37.5	5434	75	10868	560	4.31
45*4sp	45±1.0	57.8±1.0	61.8±1.5	23	3333	34.5	4999	69	9998	650	4.87
51*4sp	51±1.0	63±1.0	69±1.5	20	2898	30	4374	60	8694	720	5.4
51*4sp	51±1.0	63±1.0	69±1.5	35	5072	70	10143	875	12679	900	5.7
64*4sp	64±1.2	77±1.0	84±1.5	35	5072	70	10143	875	12679	1100	6.7
76*4sp	76±1.4	101±1.5	107±2	35	5072	70	10143	875	12679	1200	16.5
89*4sp	89±1.4	114±1.5	120±2	35	5072	70	10143	875	12679	1300	18.4
102*4sp	102±1.0	127±1.0	133±1.5	35	5072	70	10143	875	12679	1400	20.3
127*4sp	127±1.0	156±1.0	164±1.5	35	5072	70	10143	875	12679	1500	22
152*4sp	152±1.0	184±1.0	192±1.5	16	2318	32	4637	48	6955	2580	24
203*4sp	203±1.0	235±1.0	243±1.5	16	2318	32	4637	48	6955	3350	31
254*4sp	254±1.0	291±1.0	299±1.5	16	2318	32	4637	48	6955	4110	39

Multiple Styles

Paired Products

FAQ

FAQ

1. Are you a manufacturer or trading company?
We are both manufacturers and traders.

2. Do you accept OEM or ODM. Are you a manufacturer or trading company?
Yes, the OEM and ODM are welcome.

3. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry.

4. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.

5. How long can I expect to get the sample?

The samples will be ready for delivery in 7-15days. The samples will be sent to you via express and arrive in 5-7days.

6. What about the lead time for mass production?
Usually 25-35 days, depending on the quantity purchased.

7. What is your trading terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.

8. What are the payment methods?
100% in advance by T/T, PayPal, West Union.

9. Is there any after-sales service available and service period?
If the product has quality problems within 3 months, we will renew it for you for free.
