Inflatable Rubber Dam Information| Name | Waterproof Air Inflatable Rubber Dam/Rubber Barrage/Inflatable Weir/Flood Dam Protection Water Stop/Rubber Weir Dam/Flood Control Water Barrier |
|
| Processing Service | Cutting | |
| Material | Nylon Canvas Rubber | |
| Color/Size/Shape | Customized |
|
| Application | Industrial, Agricultural,Flood Control Capacity, Irrigation | |
| Usage | Multi-function | |
| Accessories | Pump,Adapter,Rope, Bag | |
| Logo | Customized Logo Availabled |
Inflatable Rubber Dam Features| * | Flexible in adjustment and quick in response |
||||
| It features fast inflation and deflation speeds, enabling rapid raising and lowering of the dam. During dry seasons, it inflates to retain and store water; during rainy seasons, it deflates to collapse the dam for flood discharge. This allows flexible adaptation to different hydrological conditions and reduces flood risks. | |||||
| * | Lower in cost with high cost-effectiveness |
||||
| It requires no complex rigid structures (such as the piers and gates of traditional dams), with material and construction costs accounting for only 30%-60% of those of traditional dams of the same scale. Additionally, its post-construction maintenance is simple, and the operation and maintenance costs are significantly lower than those of water-filled rubber dams. | |||||
| * | Simpler construction process and shorter time frame |
||||

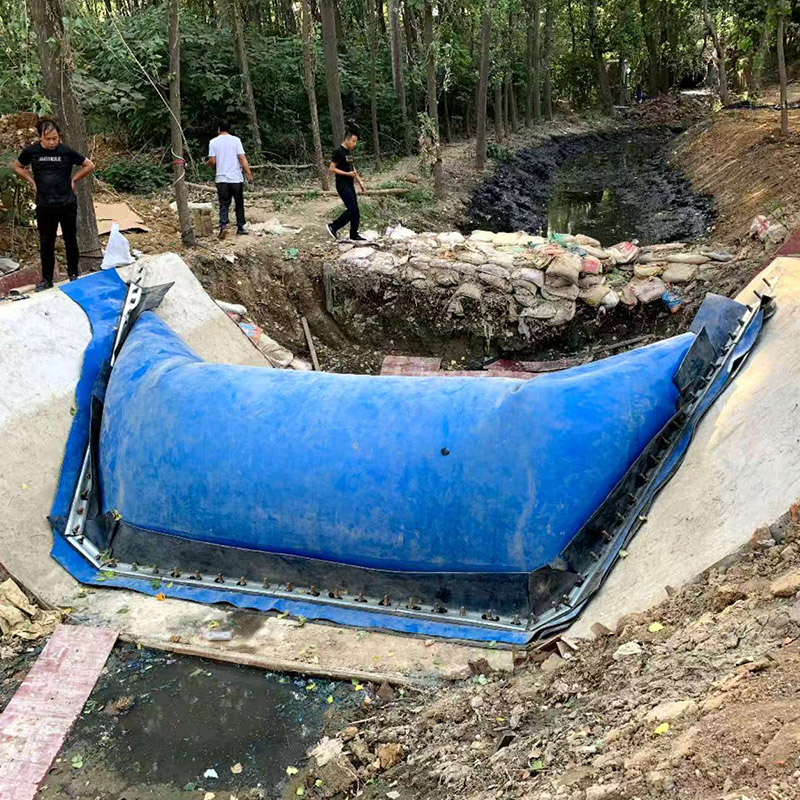

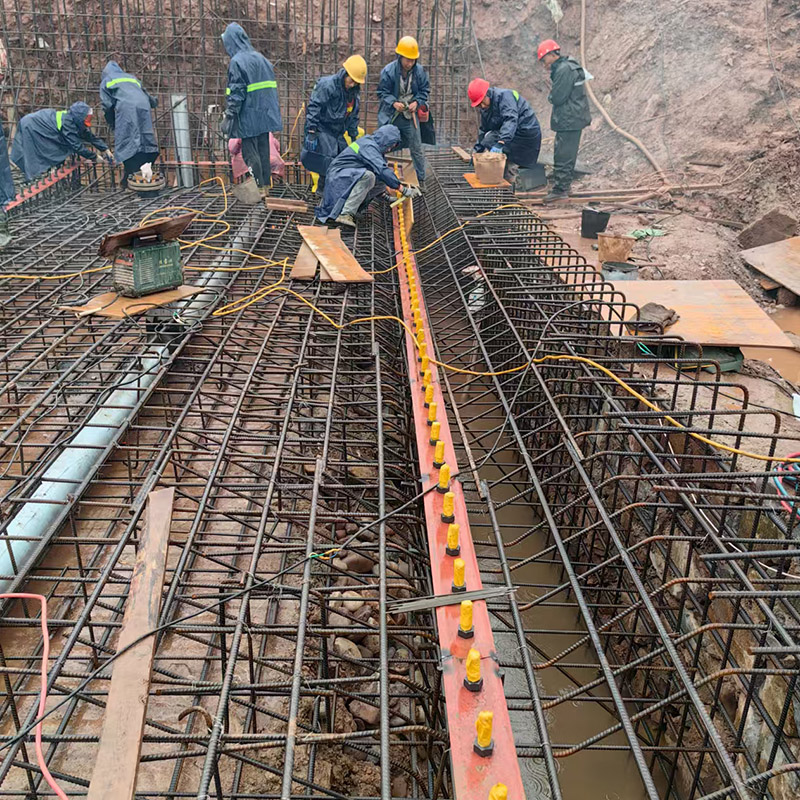

| The dam body is a prefabricated flexible structure, with on-site installation mainly involving splicing and anchoring. The construction period is usually only 3-15 days, which is much shorter than the several months or even years required for traditional dams, allowing it to be put into use quickly. | |||||
| * | Strong adaptability to various environments |
||||
| In winter, the medium inside the dam is air, which is not easy to freeze (avoiding the problem of freezing and cracking that occurs in water-filled rubber dams). The flexible dam body can adapt to slight foundation settlement and has lower requirements for the foundation than rigid dam bodies. | |||||
| * | Small footprint and excellent landscape integration |
||||

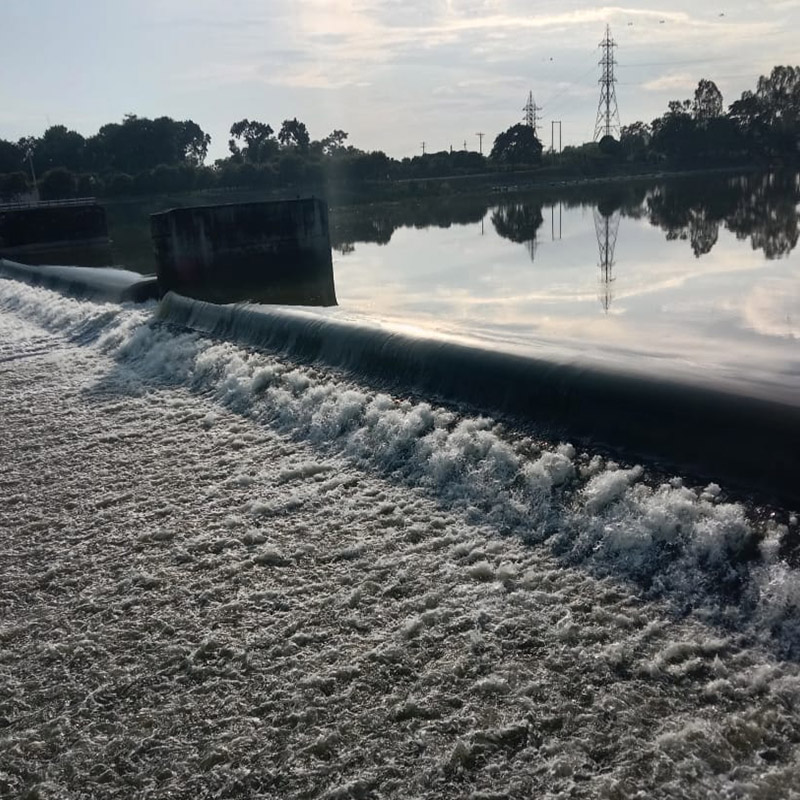

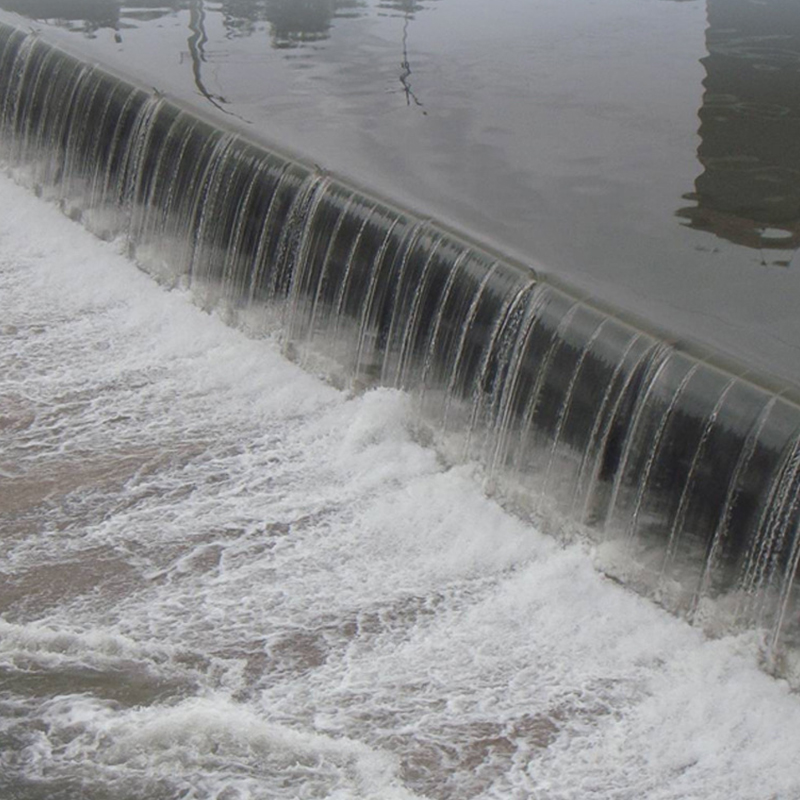

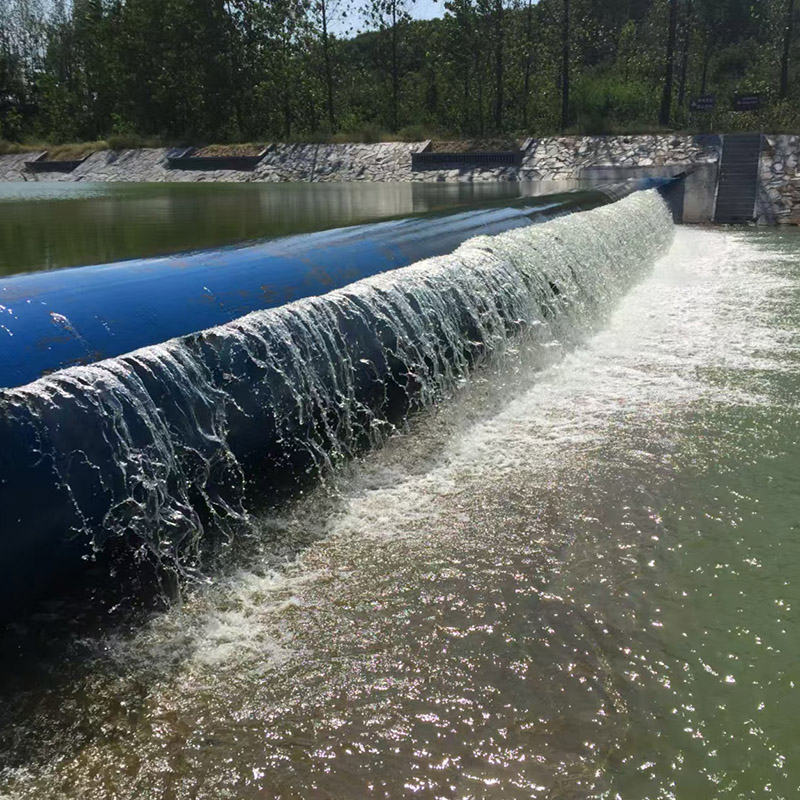

| When the dam is collapsed, its body lies tightly against the riverbed, without affecting the original flood discharge cross-section of the river. Some designs can also meet landscape needs—when water overflows the dam crest, it forms waterfall-like scenic effects, making it suitable for municipal waterfront projects. | |||||

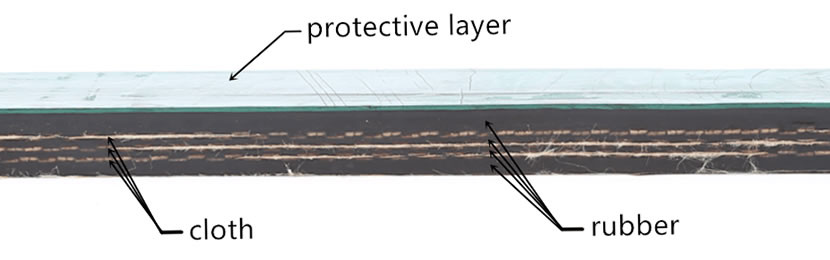

| Rubber Dam Structure Schematic Diagram | |||||

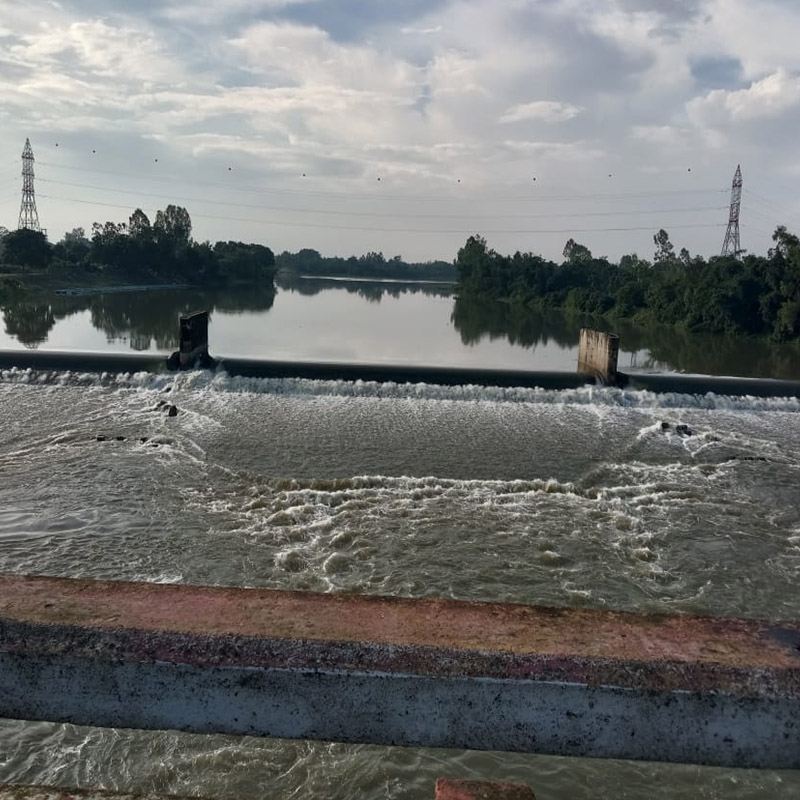

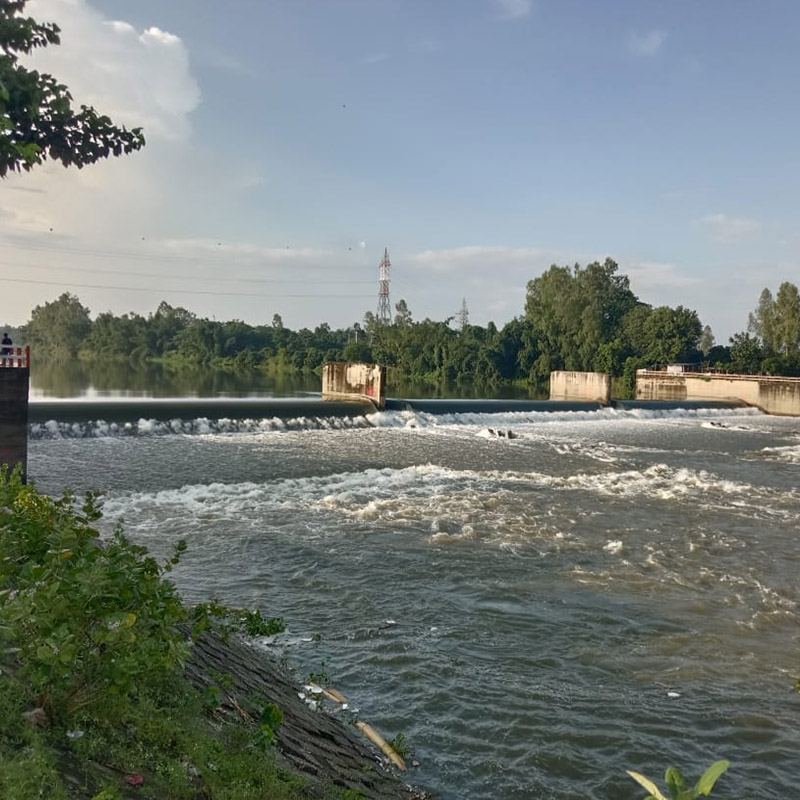

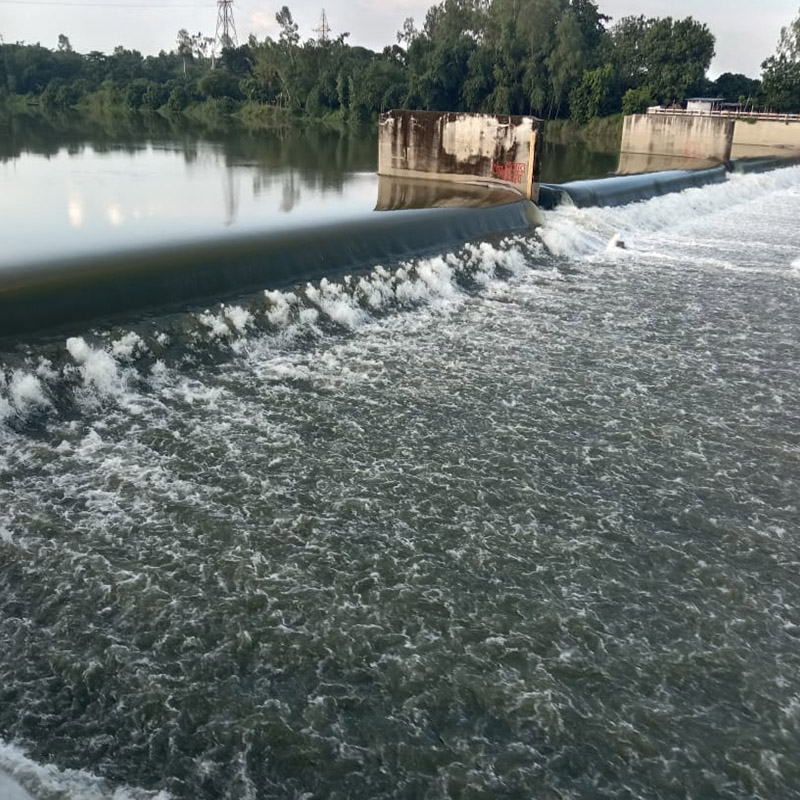

Applications/Project Case
| * | Retain water. | |||
| * | Divert water for irrigation. | |||
| * | Create pondage. | |||
| * | Control flood. | |||
| * | Control water. | |||
| * | Erosion control. | |||
| * | Tidal barriers. | |||
| * | Raise existing dams. | |||
| * | Develop water entertainment and tourism. | |||
| * | Power generation. | |||
| * | Urban landscaping. | |||
| * | Groundwater recharge. | |||
| * | Sewage treatment. | |||
Our Rubber Dam Advantages| * |
Professional:Focused on manufacturing rubber seal for more than 20 years. |
| * |
Multi-kinds of mold:Have many different type of mold which can save you mold cost. |
| * | Customized:You can customize the shape and size you want. |
| * | Our Service: 1.Our core competency lies in our team of professional designers and project engineers, who craft precise solutions based on a thorough analysis of client needs. 2.We oversee the installation and construction process while delivering dedicated technical support. 3.24-hour online service. |
| * | Eco friendly rubber dam. |
| * | Reasonable and competitive price. |
| * | We have extensive experience across diverse project applications, such as: rubber dam for water control rubber dam for irrigation rubber dam for flood protection,etc. |
Series Products| Physical and mechanical properties of the air inflatable rubber dam | |||||
| Item | Unit | Outer layer | Middle layer, Inner layer |
Cover rubber sheet | |
| Tensile strength at break≥ | Mpa | 14 | 12 | 6 | |
| Elongation at break≥ | % | 400 | 400 | 250 | |
| Permanent deformation at break≤ | % | 30 | 30 | 35 | |
| Hardness(shore A) | . | 55~65 | 50~60 | 55~65 | |
| Brittleness temperature≤ | °C | -30 | -30 | -30 | |
| Hot water aging (100°C*96h) | Tensile strength at break≥ | Mpa | 12 | 10 | 5 |
| Elongation at break≥ | % | 300 | 300 | 200 | |
| Hot water aging (70°C*96h) | Tensile strength at break≥ | Mpa | 12 | 10 | 5 |
| Elongation at break≥ | % | 300 | 300 | 200 | |
| Volume expansion ratio≤ | % | 15 | 15 | 15 | |
| Ozone aging: 10000pphm, temperature 40°C, stretching 20%, no cracking | min | 120 | 120 | 100 | |
| Wear loss( Akron) ≤ | cm³/1.61km | 1.0 | 1.0 | 1.2 | |
| Flexibility, no cracking | Ten thousand times | 20 | 20 | 20 | |
| Rubber Dam Types |
|||

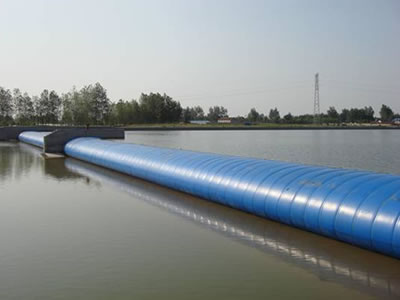

| Air Inflatable Rubber Dam | |
Water Inflatable Rubber Dam |  |
| Bookend Rubber Dam |  |
Shield Type Rubber Dam |  |
| Spoiler Rubber Dam |  |
Movable Inflatable Rubber Dam |  |
| Rubber Dam Accessories |  |
||
FAQ5. What is your trading terms of delivery?
We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
